3. Backhaul
Overview
The following figure illustrates the components and data flow for a four-line, dual-backhaul,
point-to-point line:

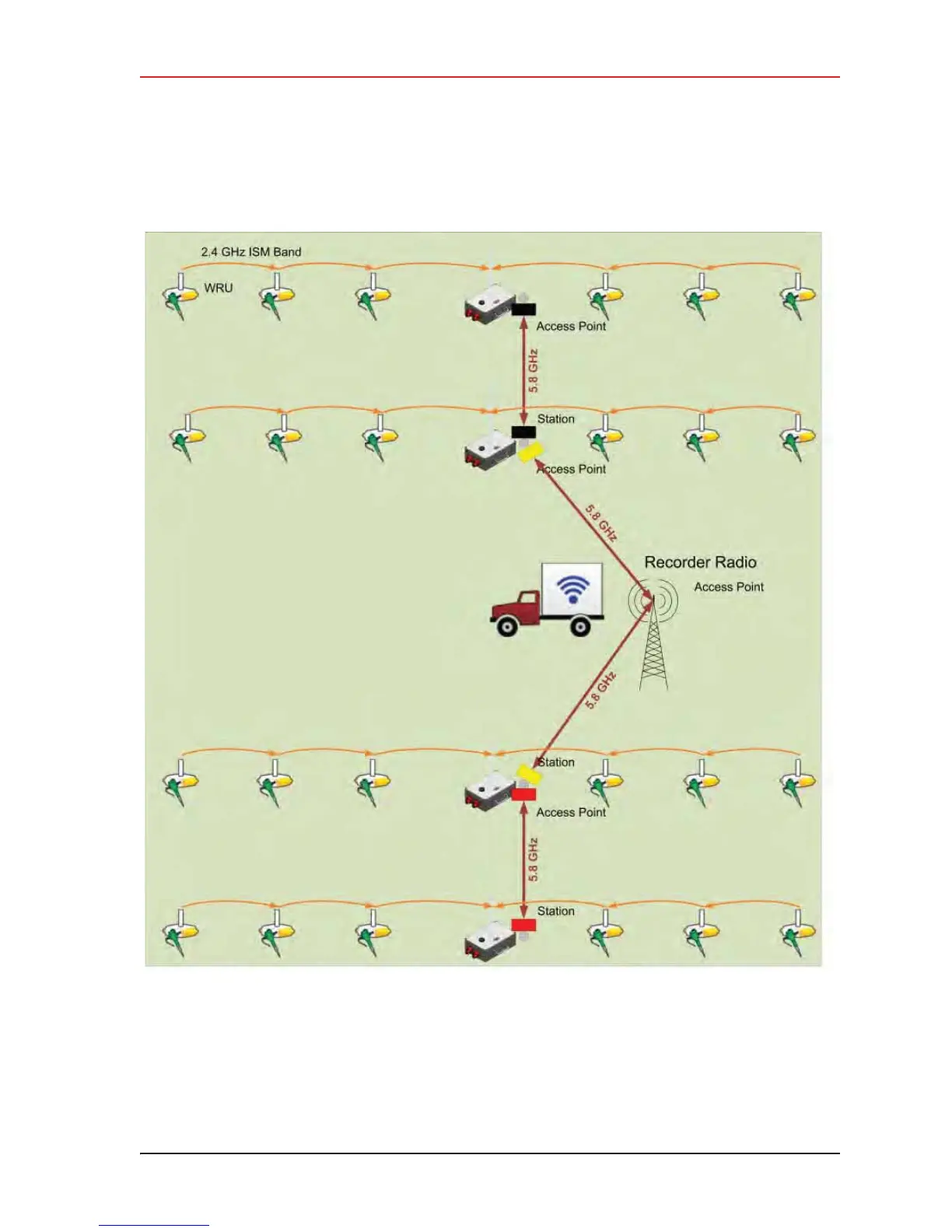

Figure 3–2 Point-to-Point Dual Backhaul Data Direction
