R01.i RT System 2 v2.3 Deployment Guide 125
© 2010-2014 Wireless Seismic, Inc. All rights reserved.
5. Point-to-Multipoint Backhaul
Final Communication Test
c Repeat step a and step b for all of the radios.
10 If the individual links are all good but the backhaul as a whole does not deliver the
appropriate throughput, it indicates that there is an interference problem.
Contact Andy Prokop, Jerry Stair, or Mike Shilts for project-specific recommendations.
11 If there are individual links with low numbers, perform the following steps to fix them:
a Verify that the radios are pointing in the correct directions.
b Verify that there are no frayed cables or cables with water intrusion.
c Verify that shielding is properly installed. The following figure shows the radio/
antenna shielding:

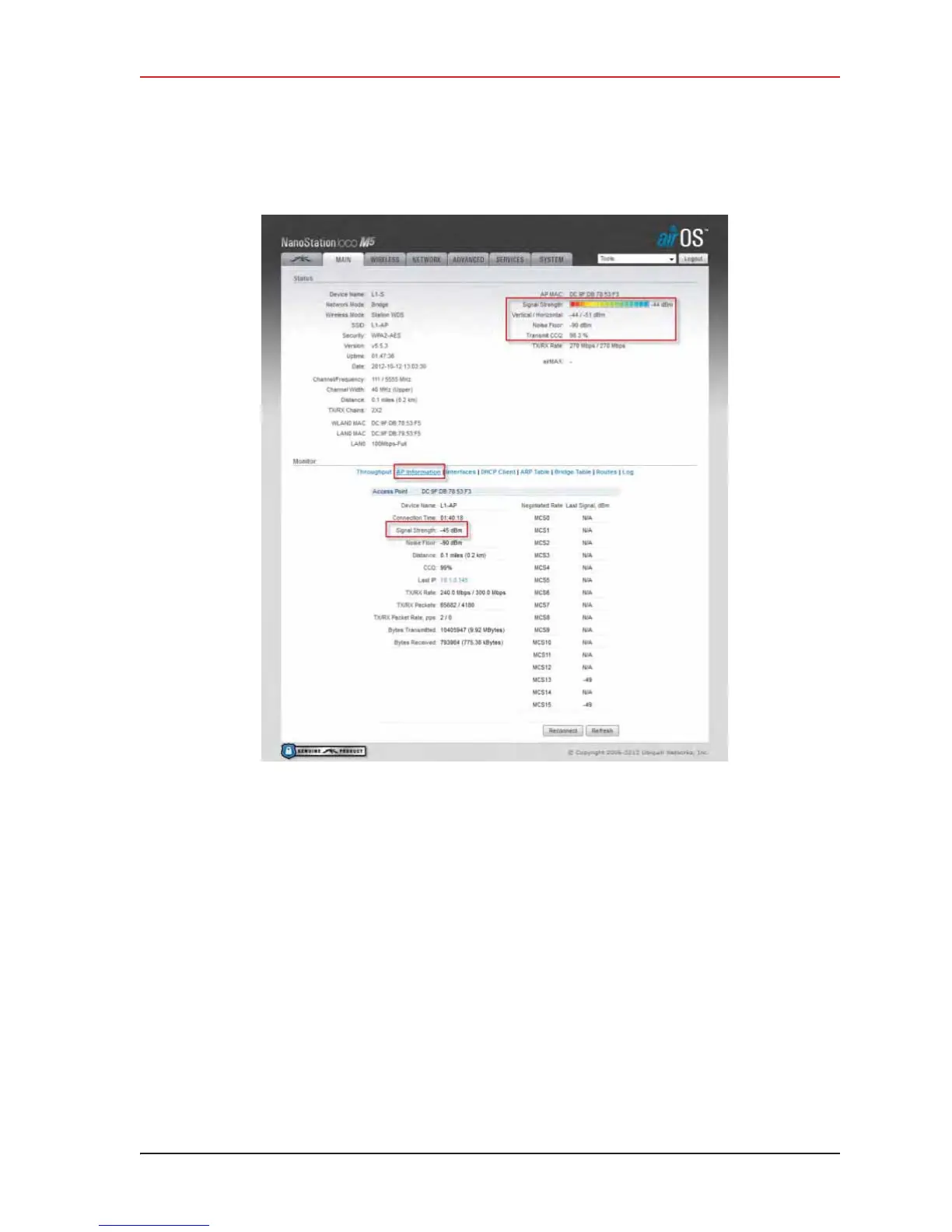

Figure 5–22 NanoStation Main Tab
