4. Point-to-Point Backhaul
Connecting to the Recording Truck
5 Click OK.
4.10 Connecting to the Recording Truck
The line communicates to the recording truck through an LIU using one of the following
methods:
i Fiber cable
i Radio link (pendant)

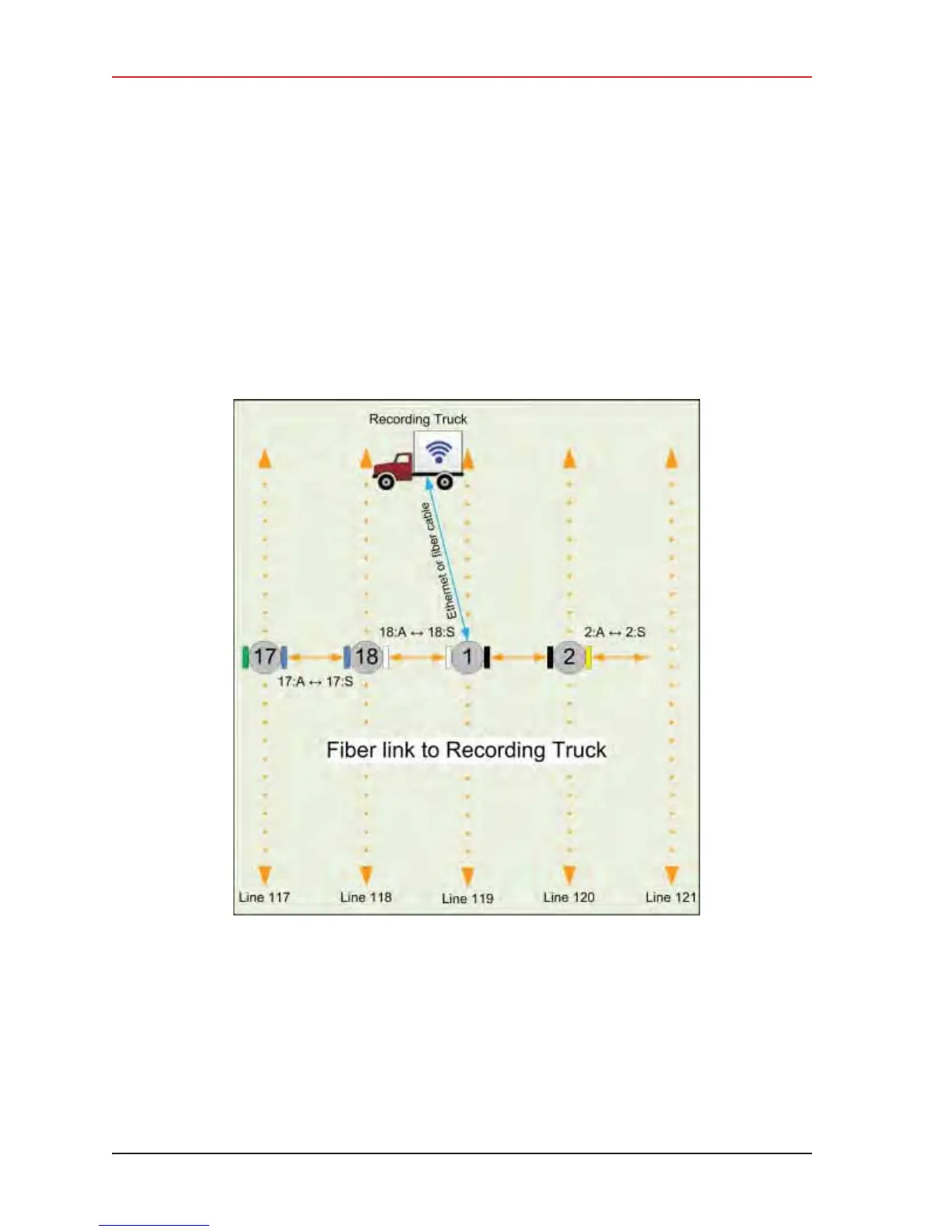

The following figure shows a fiber cable connection example:
Figure 4–26 Connecting the Recording Truck with Fiber
