4. Point-to-Point Backhaul

Final Communication Test

b Type ubnt in the User text box.

c Type ubnt in the Password text box.

d Type 443 in the Remote WEB Port text box.

e The default test Direction is duplex; the test is performed for both transmit and

receive. If you want to run the test in only one direction, perform the following steps:

1) Select the Show Advanced Options check box.

2) Select transmit or receive.

f Click Run Test.

g Good Test Results are as follows:

Ź RX (receive) only = 70+ Mbps

Ź TX (transmit) only = 70+ Mbps

Ź Total (duplex) = 90+ Mbps

– RX = 40+ Mbps

– TX = 40+ Mbps

7 If Speed Test results are low, use a systematic approach of testing links to identify the

offending radio pairs:

a Log in to a Station (S) radio.

b Click the Main tab and verify the following values:

Ź Signal Strength < -75 dBm

Ź Either the Vertical or Horizontal (Main Tab, Stations only) < -80 (between -65

and -75 is ideal)

Ź Transmit CCQ < 90% (100% is ideal)

Ź Click AP Information in the Monitor area. Verify that the Access Point Signal

Strength < -75 dBm

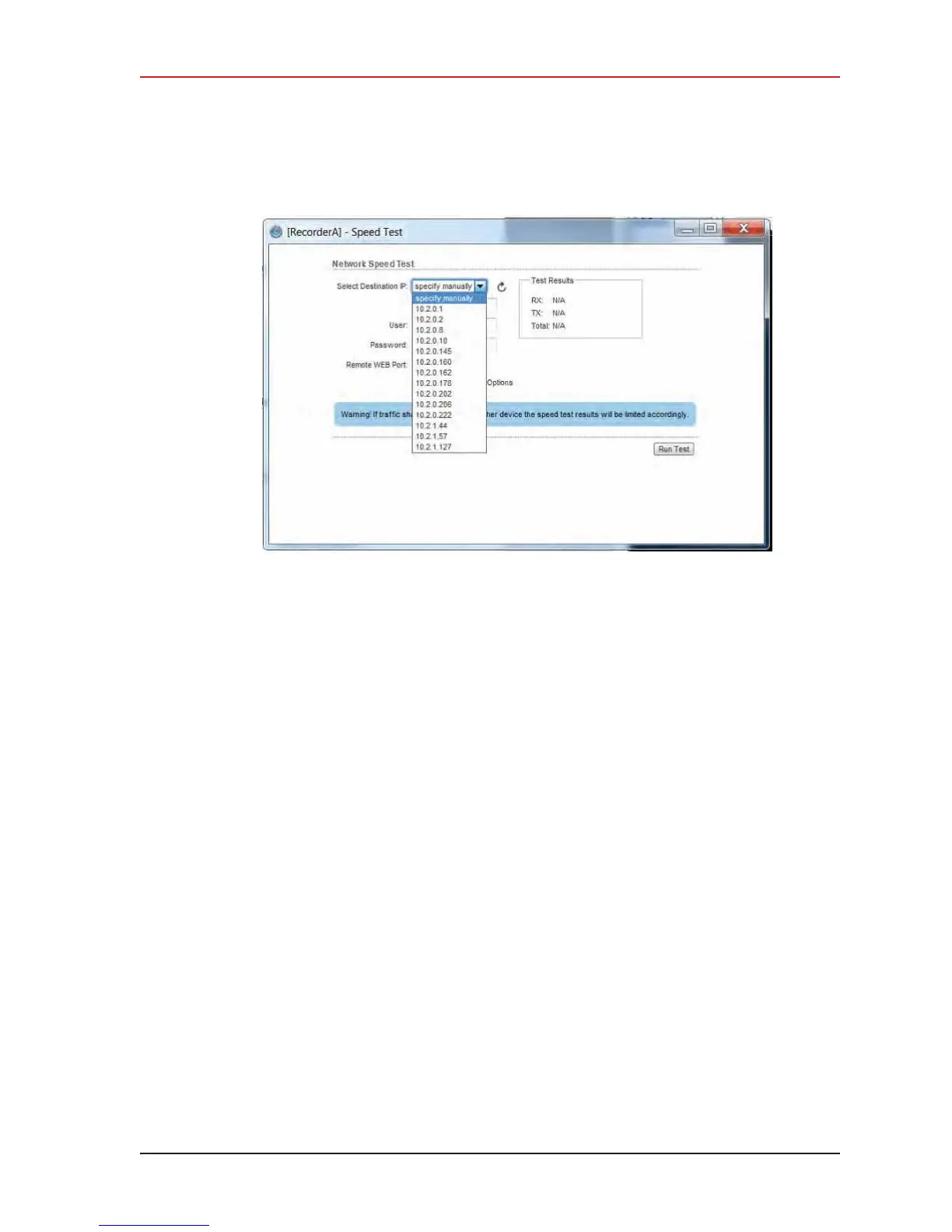

Figure 4–19 Speed Test Window
