5. Point-to-Multipoint Backhaul
Final Communication Test
9 If Speed Test results are low, perform the following steps for a NanoStation radio. Use a
systematic approach of testing links to identify the offending radio pairs:
a Log in to a Station (S) radio.
b Click the Main tab and verify the following values:
Ź Signal Strength < -75 dBm
Ź Either the Vertical or Horizontal (Main Tab, Stations only) < -80 (between -65
and -75 is ideal)
Ź Transmit CCQ < 90% (100% is ideal)
Ź Click AP Information in the Monitor area. Verify that the Access Point Signal
Strength < -75 dBm

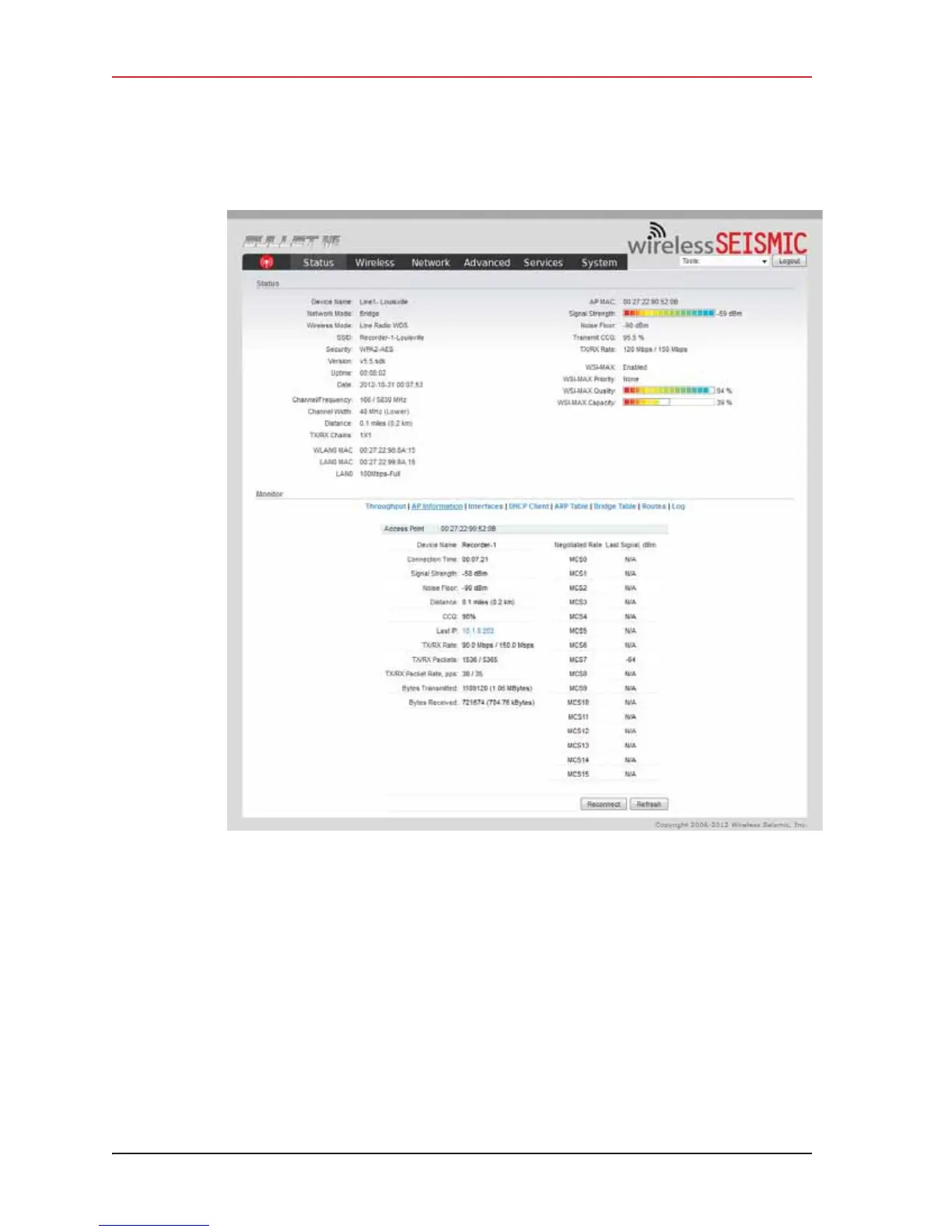

Figure 5–21 Bullet Radio Status Tab
