4. Point-to-Point Backhaul
Rolling the Backhaul
For a backhaul using 18 poles, even if you do not have all 18 lines set up at the same time,
the rolling scheme must be followed using all 18 poles as shown in the following figure:

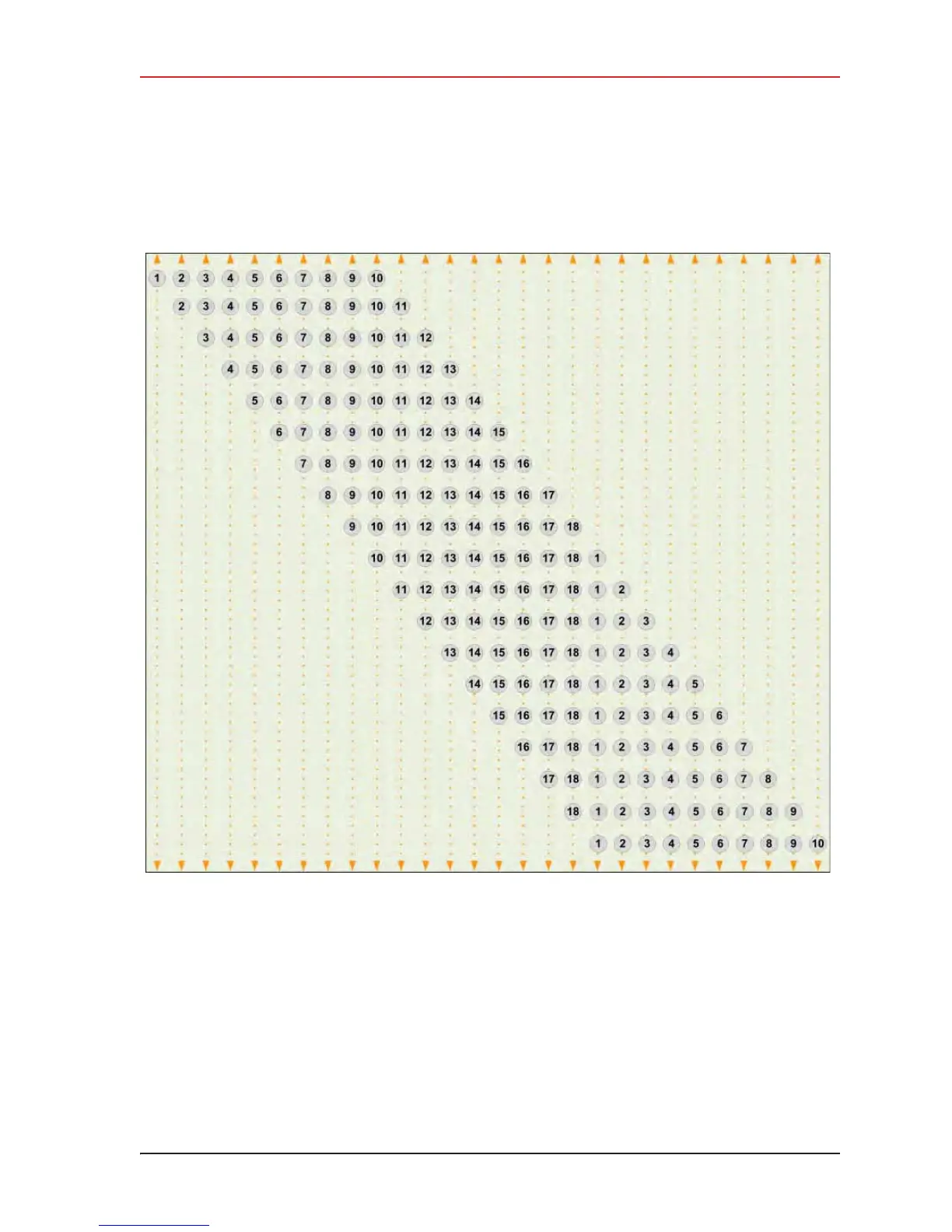

Figure 4–24 Rolling Scheme, 18 Pole Backhaul, 10 Poles in Use
