wireless Seismic RT System 2 - Figure 4-21 Nanostation Radio Shielding and Surge Suppressor

R01.i RT System 2 v2.3 Deployment Guide 85
© 2010-2014 Wireless Seismic, Inc. All rights reserved.
4. Point-to-Point Backhaul
Final Communication Test
c Check for misaligned or improperly installed shielding.
d Verify that the radios on the same pole are at least three feet apart.
e Verify that the Access Point (A) radio is three feet higher on the pole than the Station
(S) radio.
f If possible, raise the poles (masts) to provide the least-obstructed view to the
partner radio as is reasonable.
g Verify that there are no frayed cables or cables with water intrusion.

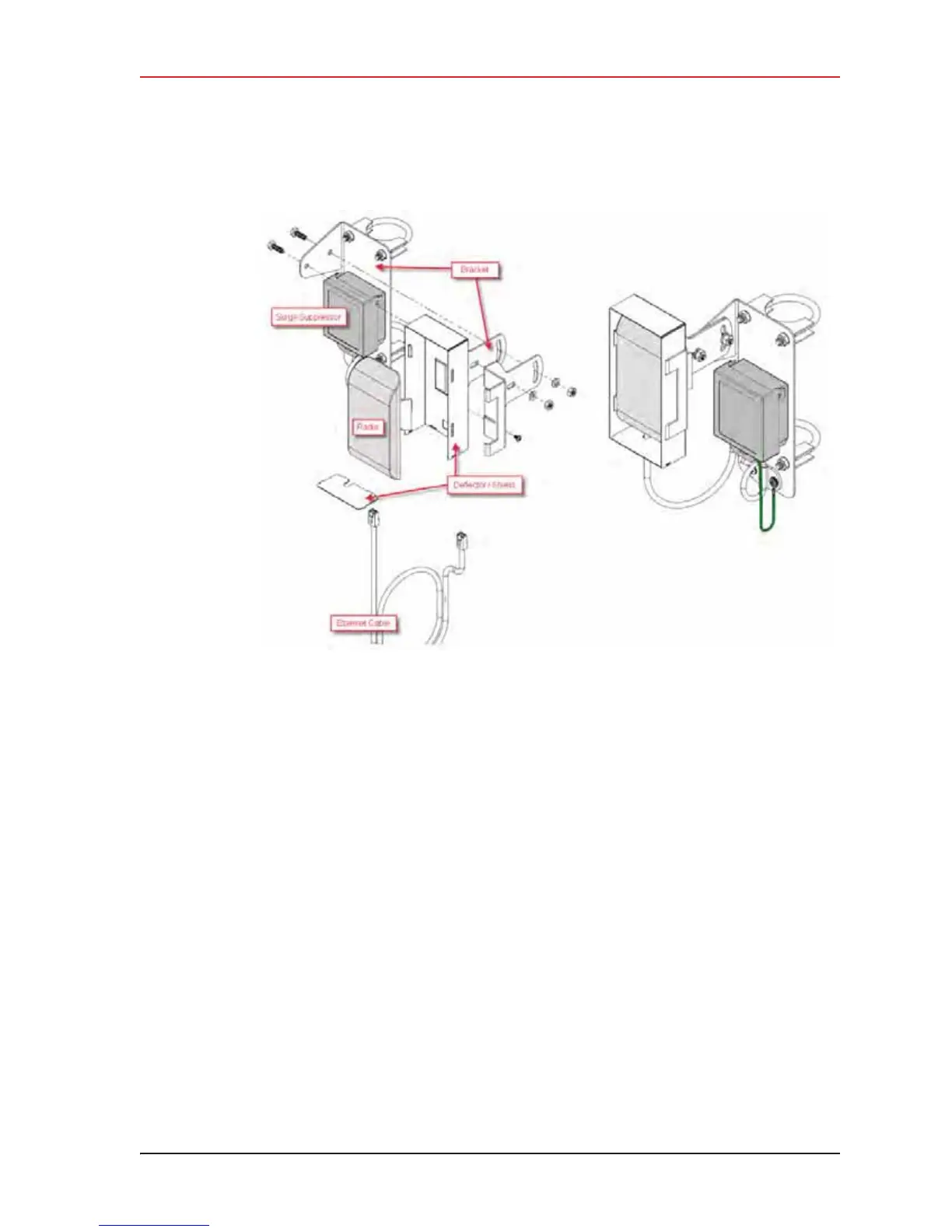

Figure 4–21 NanoStation Radio Shielding and Surge Suppressor
