R01.i RT System 2 v2.3 Deployment Guide 45

3. Backhaul

Backhaul Components

3.2.8 Cable Assemblies

The following cables are used in the backhaul:

i Cable, LIU to Battery (60-0034)

i Cable, LIU to NanoStation Radio (60-0036)

i Cable, Ethernet, 120 ft Shielded, Black with Red shrink tube (60-0036)

i Cable, LIU-to-PC (60-0039)

i Cable, Ethernet, 3 ft Shielded (65-0104)

i Cable, Armored Ethernet, 10 ft (60-0053)

i Cable, Shielded Ethernet, 15 ft (60-0054)

i Cable, Armored Ethernet, 15 ft (60-0055)

i Cable, Shielded Ethernet, 120 ft (60-0038)

i Cable, RF Extender, 10 ft (65-0103)

i Cable, RF Extender, 25 ft (65-0110)

i Fiber Backhaul Kit, 250 m (15-0037)

Ɣ Media Converter (60-0017)

Ɣ Cable, Backhaul Jumper (60-0033)

Ɣ Cable, Fiber Optic, Armored, 250 m (60-0026)

i Fiber Backhaul Kit, 500 m (15-0038)

Ɣ Media Converter (60-0017)

Ɣ Cable, Backhaul Jumper (60-0033)

Ɣ Cable, Fiber Optic, Armored, 500 m (60-0023)

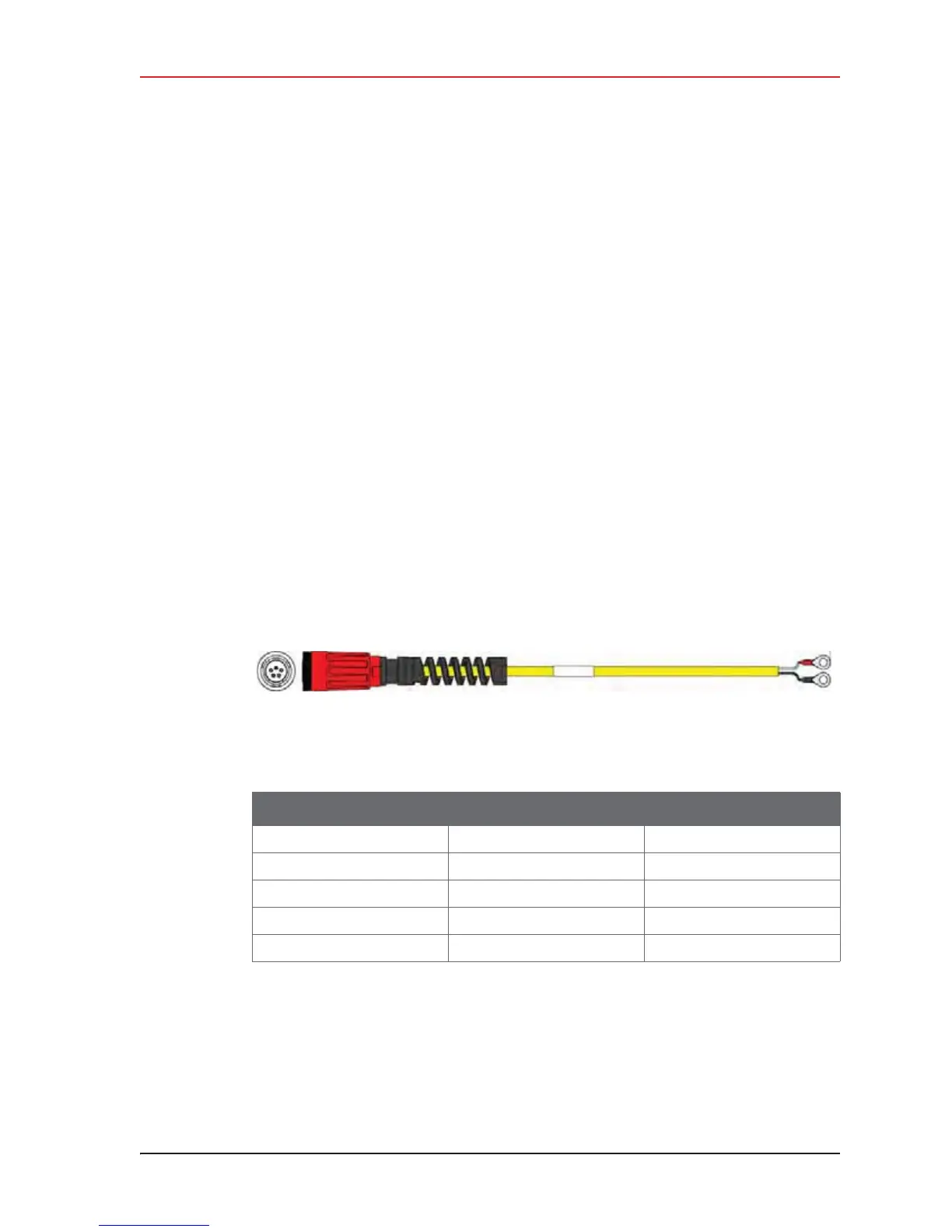

Figure 3–14 Cable, LIU to Battery (60-0034)

Table 3–6 Cable Pinout, LIU to Battery (60-0034)

5-Pin Connector 2-Terminal End Signal Name

ANC—

BWHT+V

CBLK5-V

DNC—

ENC—
