130 RT System 2 v2.3 Deployment Guide R01.i
© 2010-2014 Wireless Seismic, Inc. All rights reserved.
5. Point-to-Multipoint Backhaul
Connecting to the Recording Truck
The following figure shows a radio link (pendant) connection example.

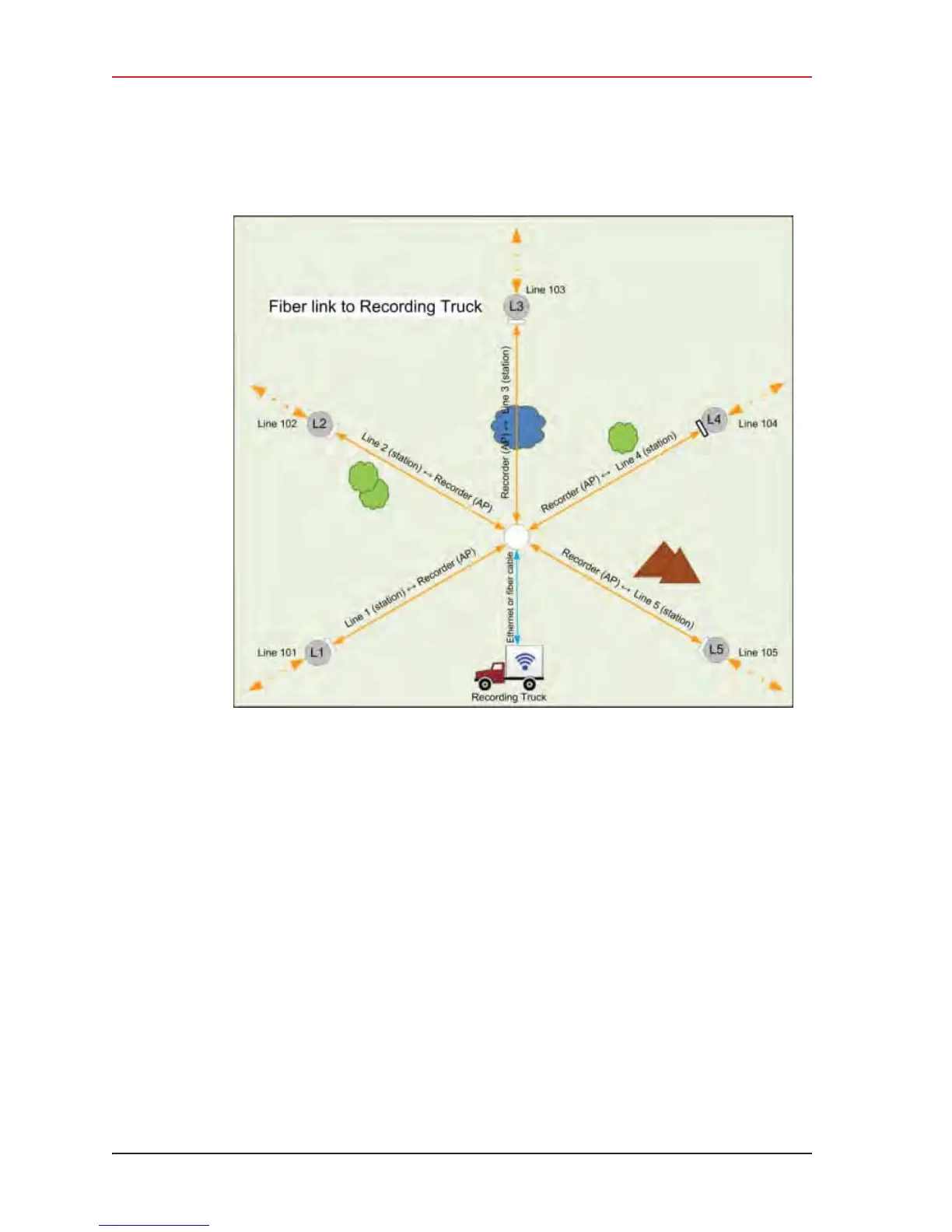

Figure 5–26 Connecting the Recording Truck with Fiber
