72 RT System 2 v2.3 Deployment Guide R01.i

4. Point-to-Point Backhaul

Preparation

2 Configure the computer to be a private network with a static IP address of

192.168.1.100. See the Troubleshooting Guide, Additional Information chapter, Setting a

Static IP Address section if you need instructions on setting the IP address.

3 Connect a single radio to the computer.

•3-AP.cfg •9-AP.cfg •15-AP.cfg

•3-S.cfg •9-S.cfg •15-S.cfg

• 4-AP.cfg • 10-AP.cfg • 16 -AP.cfg

•4-S.cfg •10-S.cfg •16-S.cfg

• 5-AP.cfg • 11-A P.cfg • 17-AP.cfg

•5-S.cfg •11-S.cfg •17-S.cfg

• 6-AP.cfg • 12-AP.cfg • 18 -AP.cfg

•6-S.cfg •12-S.cfg •18-S.cfg

NOTE

When using a radio link (pendant) to the recording truck, the following

configuration files are also required:

• Recorder-AP.cfg

•Recorder-S.cfg

See “Connecting to the Recording Truck” on page 92 for more information on

using a pendant radio link.

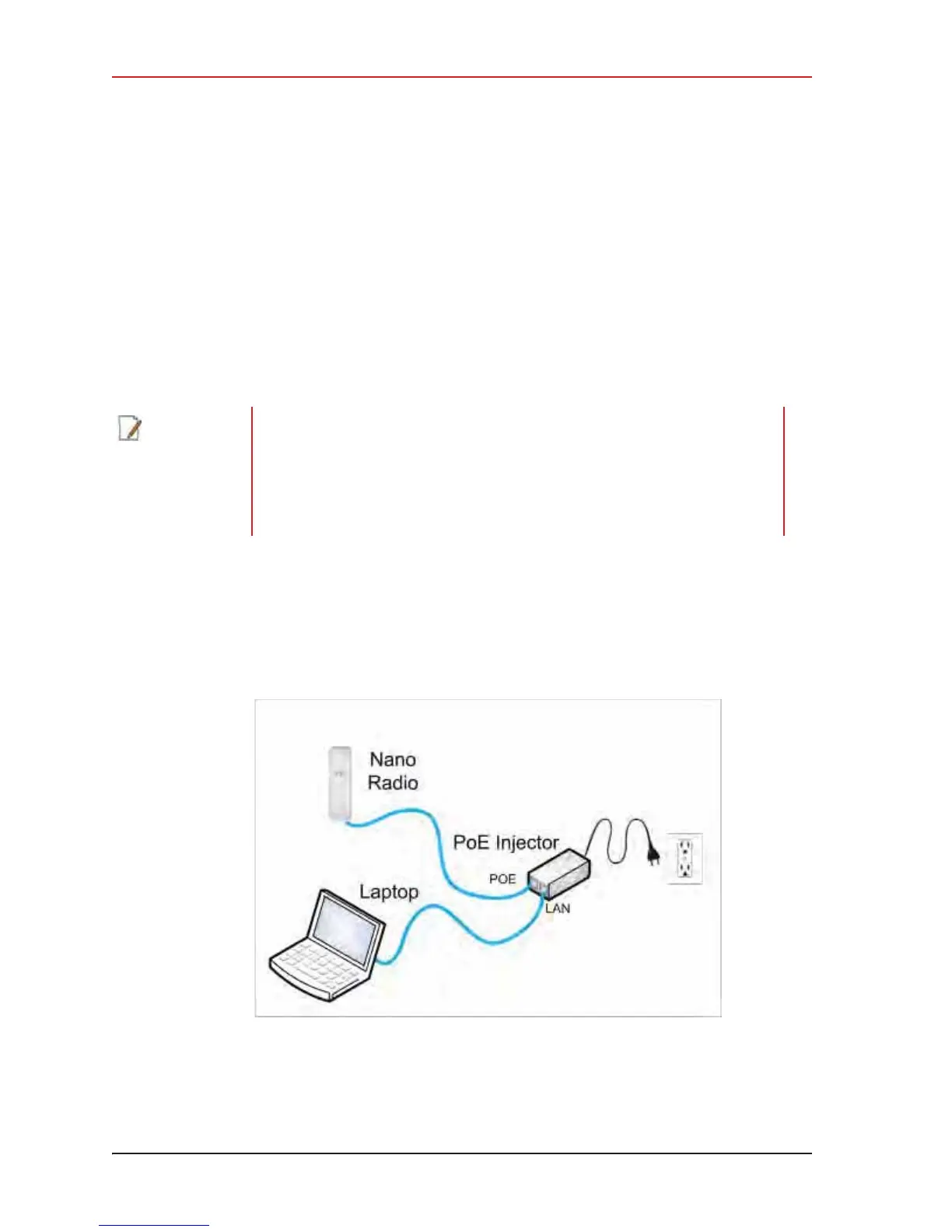

Figure 4–7 Ubiquiti NanoStation Private Network Connection
