2. Layout
WRU Anchor Plate
To use the anchor plate:
1 Attach the anchor plate to the WRU as shown in the following figures:
a Place the anchor plate on the geophone end of the WRU. The wide end of the anchor
plate slides on to the to the geophone end of the WRU.
b Verify that the anchor plate is placed snugly against the WRU as shown in the
following figure:

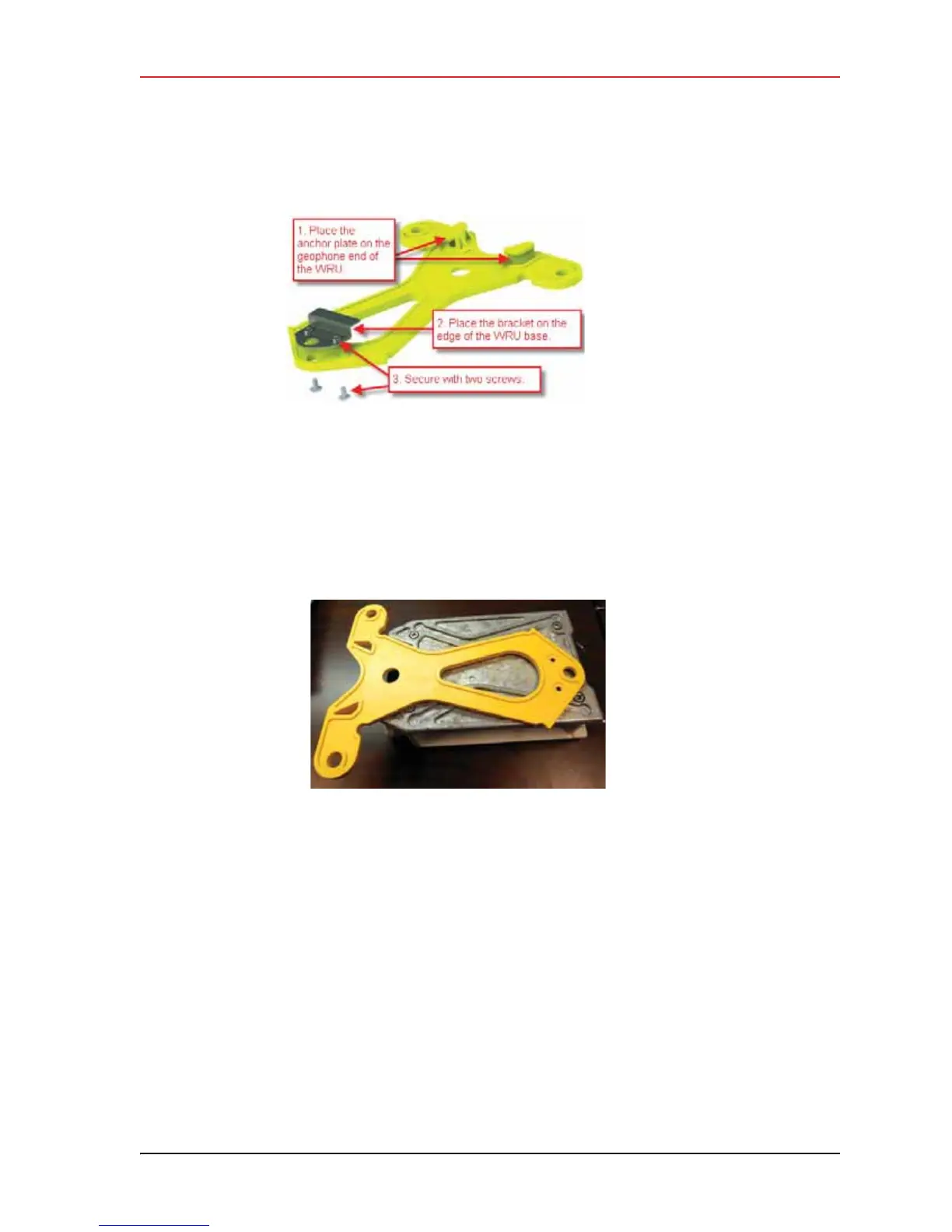

Figure 2–13 Attaching the Anchor Plate to the WRU
Figure 2–14 Anchor Plate and WRU Alignment
