4. Point-to-Point Backhaul
Connecting to the Recording Truck
The following figure shows the connections for the pendant radio link example.

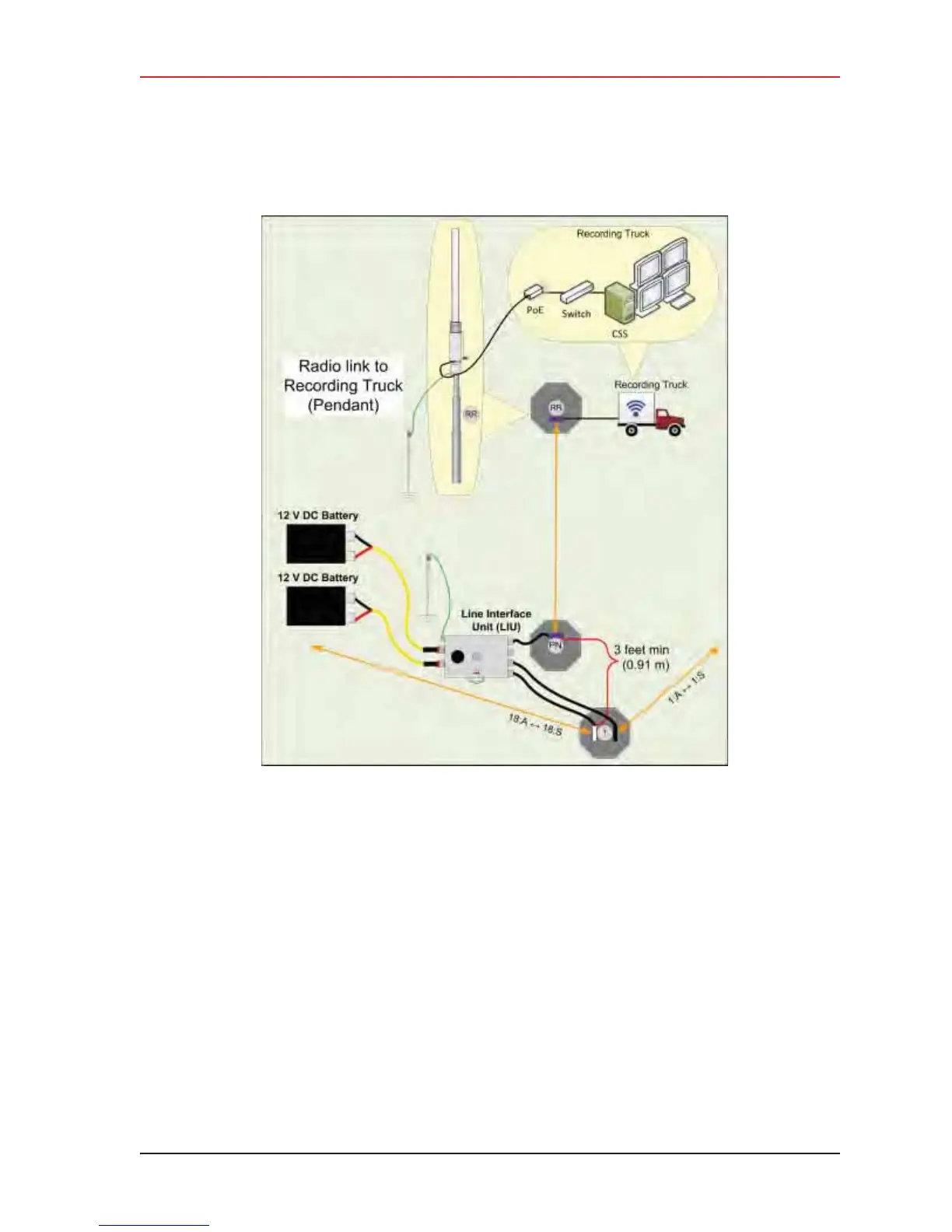

Figure 4–29 Connecting the Pendant Radio Link
