56 RT System 2 v2.3 Deployment Guide R01.i

3. Backhaul

Setting up the Backhaul

Ɣ NanoStation radio installation – While the

mast is resting on the ground, slide the

following on the mast:

Ź Mast guy ring [M-4]

10 Attach and tighten the following:

Ɣ Bullet radio installation:

Ź Bullet radio antenna brackets and

antennas [LR-4, LR-5]

Ź Omni antenna bracket [M-5] and

antenna [LR-3]

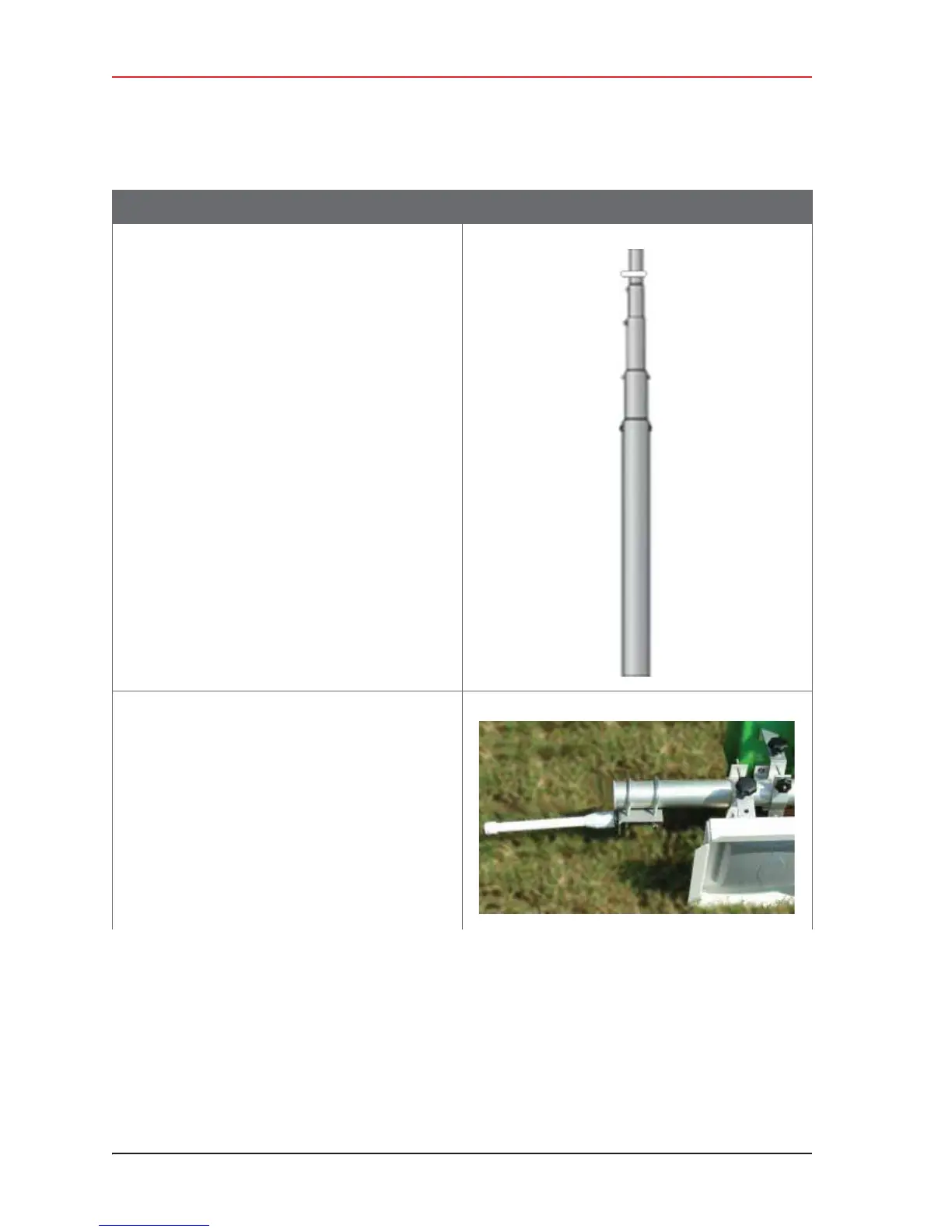

Table 3–10 How to Set Up the Backhaul

Step Image

wireless Seismic RT System 2 - Page 56
