Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-19
7
5.
6. Recheck the vertical tilt of the drive-side blade wheel with the blade guide alignment tool. Readjust
the blade wheel as necessary until the front and rear of the tool are the same distance from the bed
rail (within 1/16" [1.5 mm]).
7. Remove the tool from the blade and reattach it near the outer blade guide assembly.
8. Measure from the tool to the bed rail at both ends of the tool. If the measurements at the front and
rear ends of the tool differ by more than 1/16" (1.5 mm), adjust the vertical tilt of the idle-side blade
wheel.

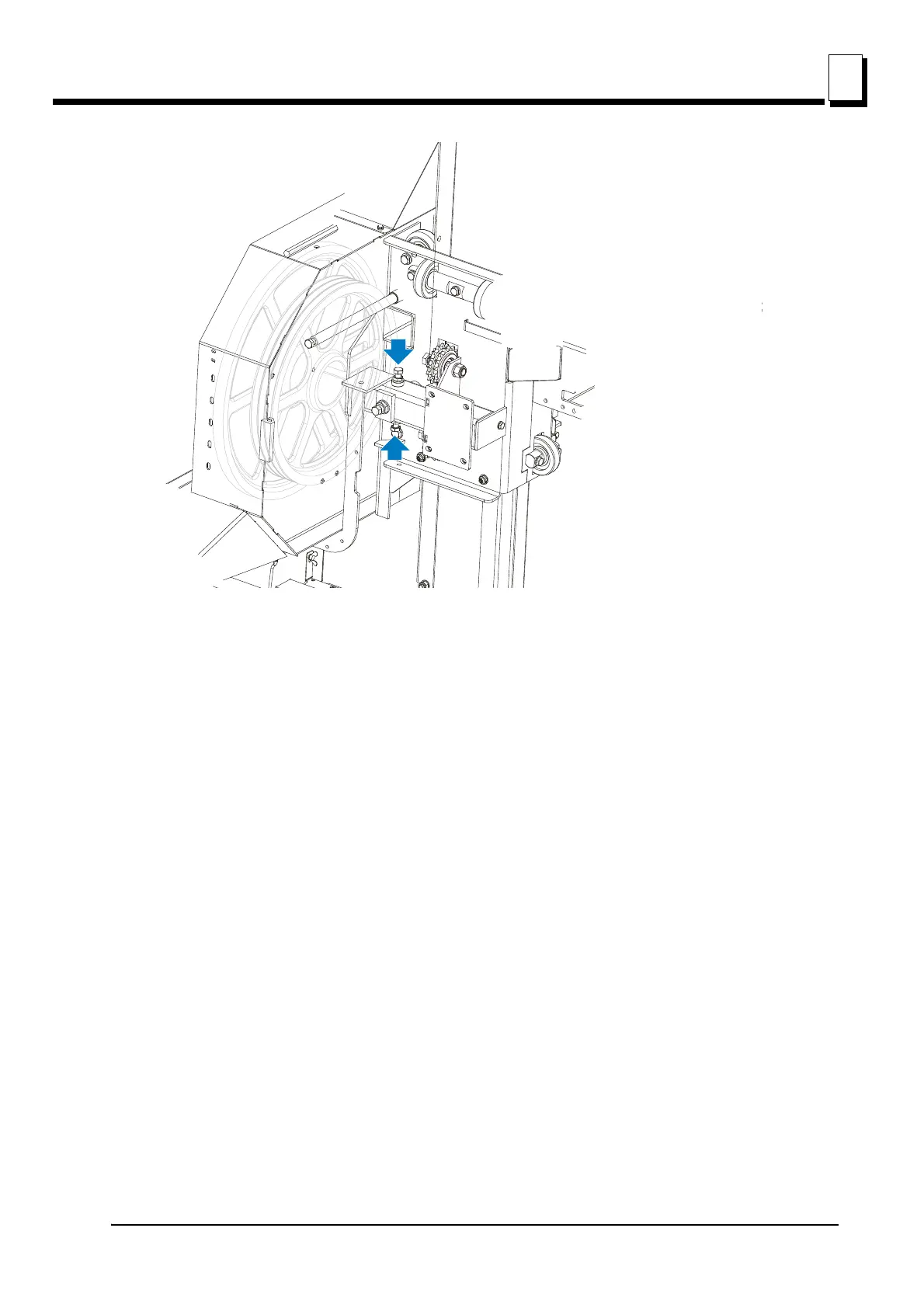

FIG. 7-17
Adjust vertical adjustment screws
up to tilt drive-side blade wheel down;
Adjust screws down to tilt wheel up
Adjust vertical adjustment screws up
to tilt drive-side blade wheel down;
adjust screws down to tilt wheel up
