July 2019
4-45
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.14
Repairs / Adjustments
Initial Release
7. Remove two screws, pull the right side of the assembly out of the printer, then slide the
asse
mbly out to the right removing Feed and Forward Roll Assembly, Figure 2.

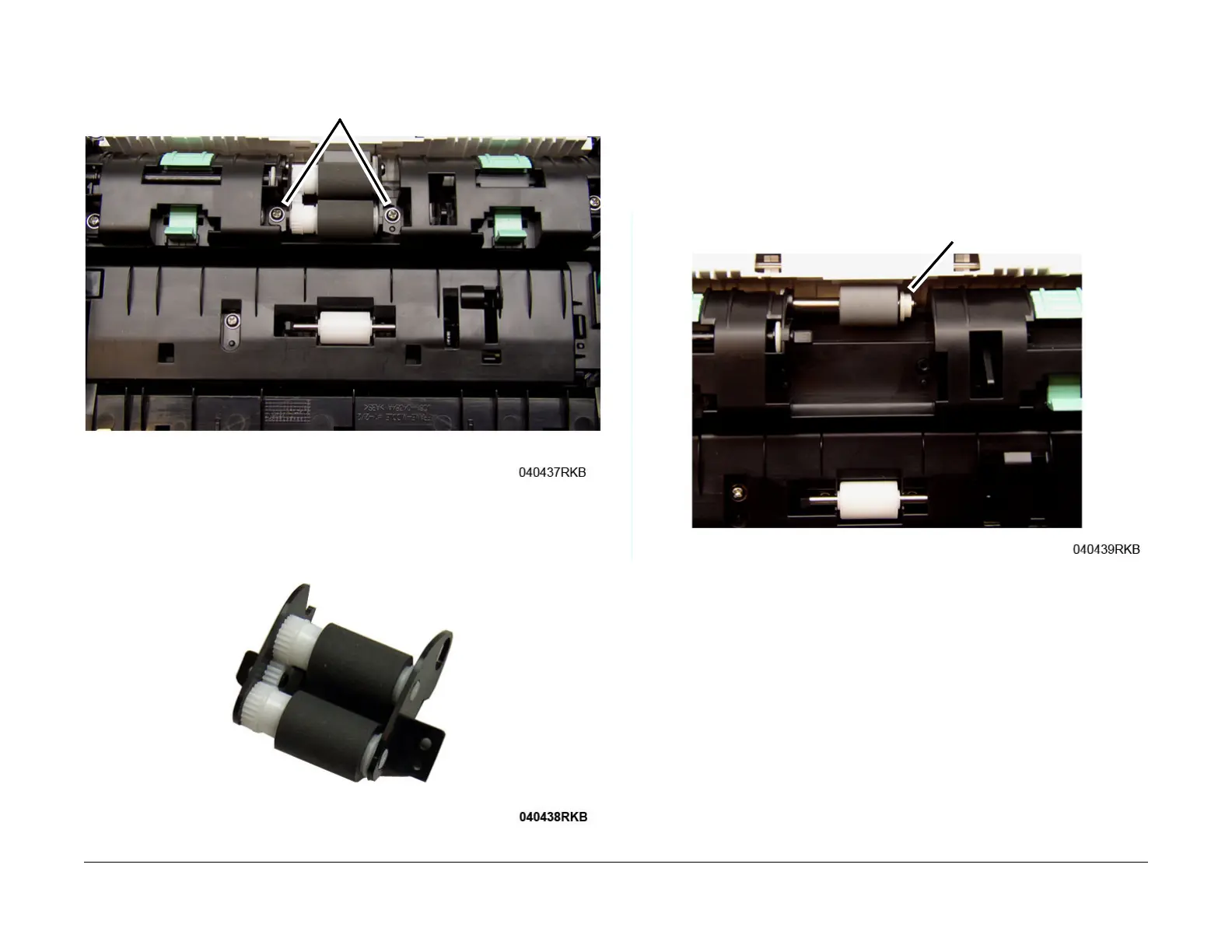

Figure 2 Removing the Feed and Forward Roll Assembly (Bottom View)
8. Remove the Feed and Forward Rolls from the assembly, F
igure 3.
Figure 3 Feed and Forward Roll Assembly
Replacement
NOTE: Tapered plastic screws and round machine screws are used to hold the cover to the
frame. Make sure that the plastic screws go into plastic components and machine screws go
into the metal frame.
The replacement is the reverse of the removal procedure.
NOTE: When replacing the Feed and Forward Roll Assembly made sure the flat on the bush-
ing is lined up with the flat on the assembly, F
igure 4.
Figure 4 Bushing Flat (Bottom View)
