Xerox B205

July 2019
4-46
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.15
Initial Release
Repairs / Adjustments
REP 4.15 Main Drive Motor
Parts List on PL 4.6
Removal
1. Switch off the printer, then disconnect the power cord.
2. The Left and Right Side Covers, RE
P 2.2.
3. The Front Cover, REP 2.1.
4. The Rear Cover, REP 2.3.
5. The Middle Covers, REP 2.5.
6. Remove the Duplex, REP 4.2.
7. Remove the Main Drive Unit, REP 4.17.
8. Remove the Feed and Registration Clutch Assembly and the PWB, Figure 1:
a. Disconnect CN3 from the Joint PWB, then remove the screw.
b. Remove the snap rings and washers from t
he Clutches, then remove the Feed and
Regist
ration Clutches.
c. Release two latches, then remove the Feed and Registration Clutch Assembly
and
th
e PWB.

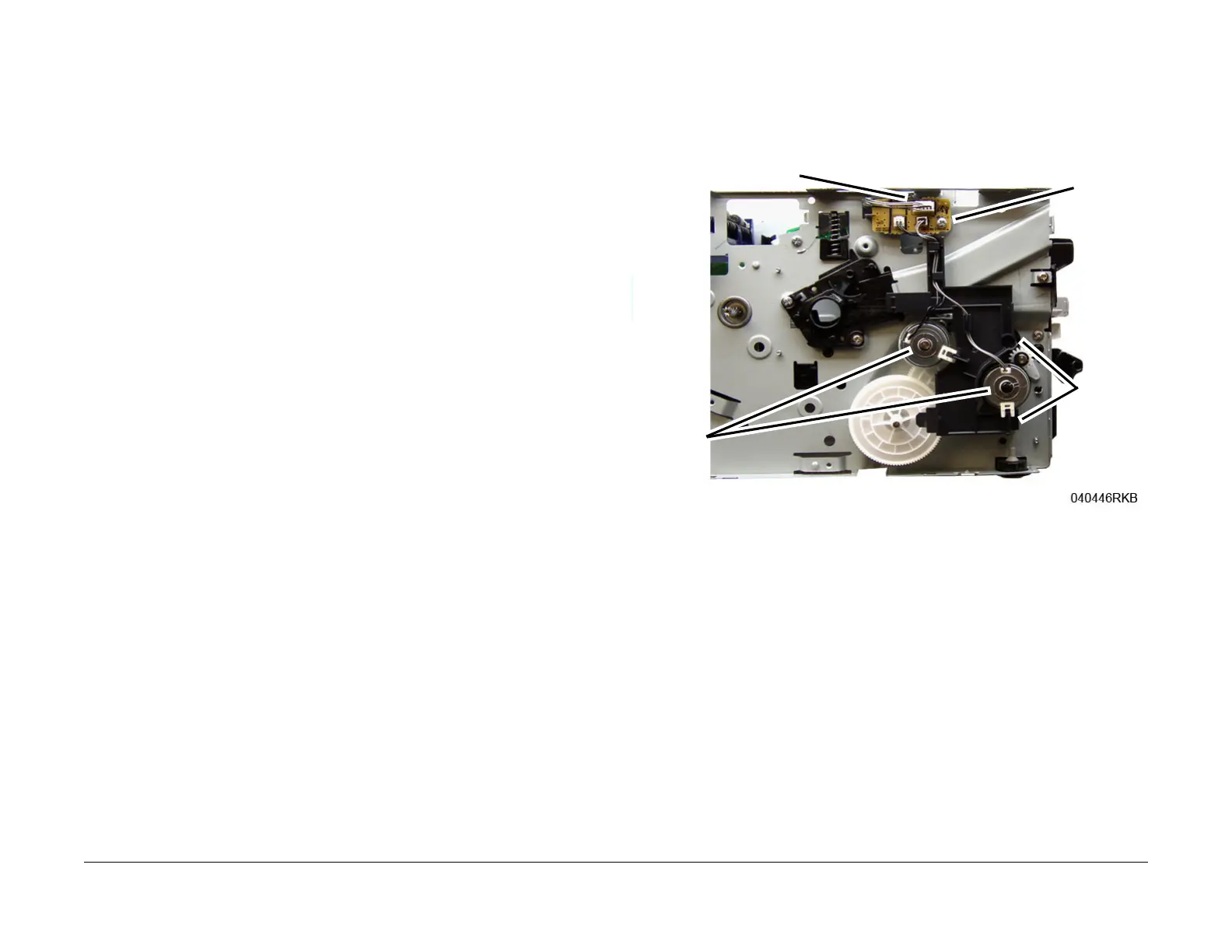

Figure 1 Feed and Registration Clutch / Feeder PWB
Screw
CN3
Snap Rings
& Washers
Latches
