Parts Lists

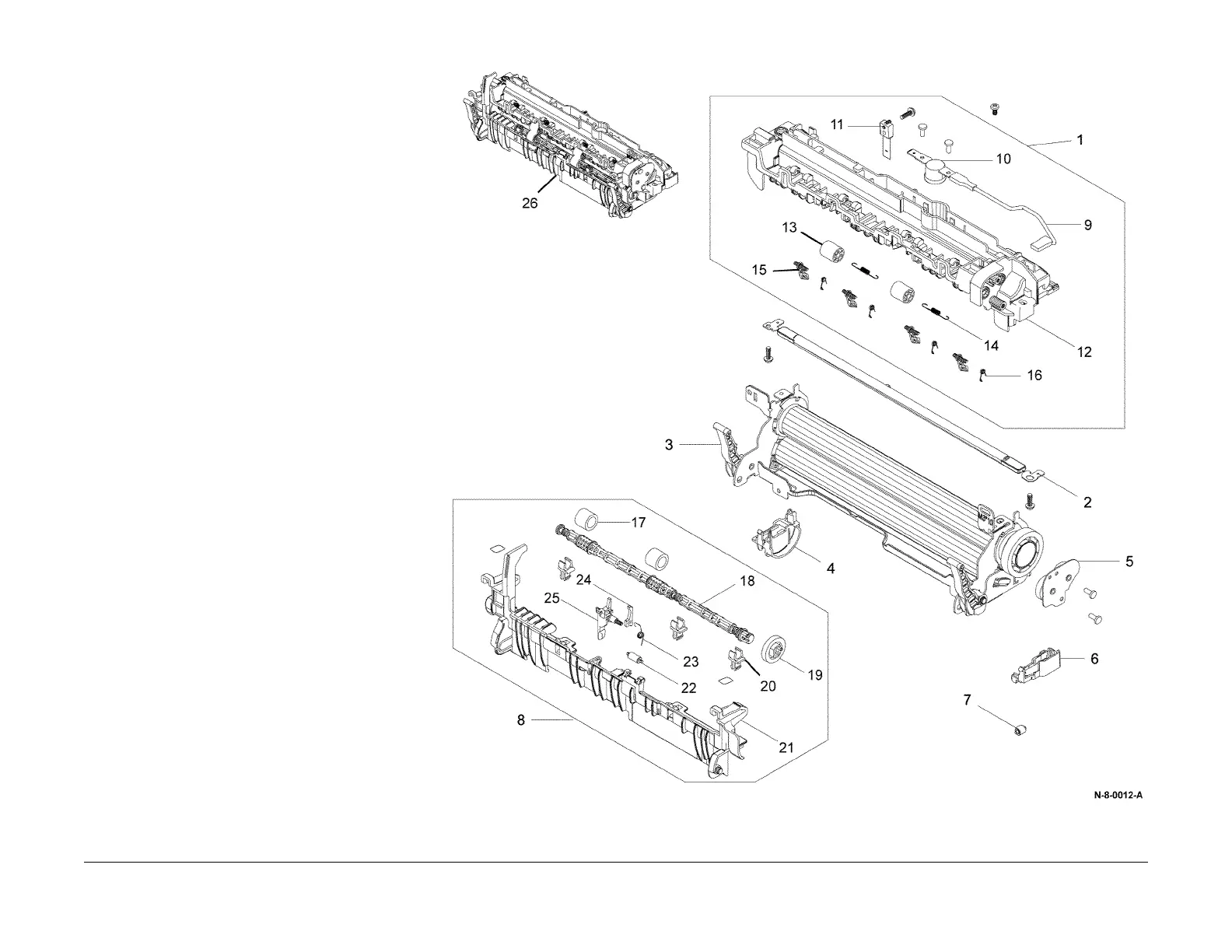

PL 5.1 Fuser
Item Part Description
1 – Upper Fuser
2 – Fuser Lamp
3 – Lower Fuser
4 – Right Lamp Cap
5 – Fuser Exit Drive
6 – Left Lamp Cap
7 – Fuser Gear Stopper
8 – Fuser Rear
9 – Fuser Joint Harness
10 – Thermostat
11 – Thermistor
12 – Fuser Cover
13 –Exit Roller
14 –Spring
15 –Guide
16 –Spring
17 –Exit Roller
18 – Exit Shaft
19 – Exit Gear
20 – Bushing
21 – Rear Guide
22 – Exit Idle Roller
23 –Spring
24 – Actuator Holder
25 – Exit Sensor Actuator
26 126N00430 Fuser Module 110V (RE
P 5.1)
– 126N00431 Fuser Module 220V (RE
P 5.1)
