July 2019
4-6
Xerox® B205/B215 Multifunction Printer Service Manual
REP 1.3, REP 1.4
Initial Release
Repairs / Adjustments
REP 1.3 ADF Hinges
Parts List on PL 1.1
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the ADF, RE
P 1.3.
3. Remove four screws, then remove the hinges, Figure 1.

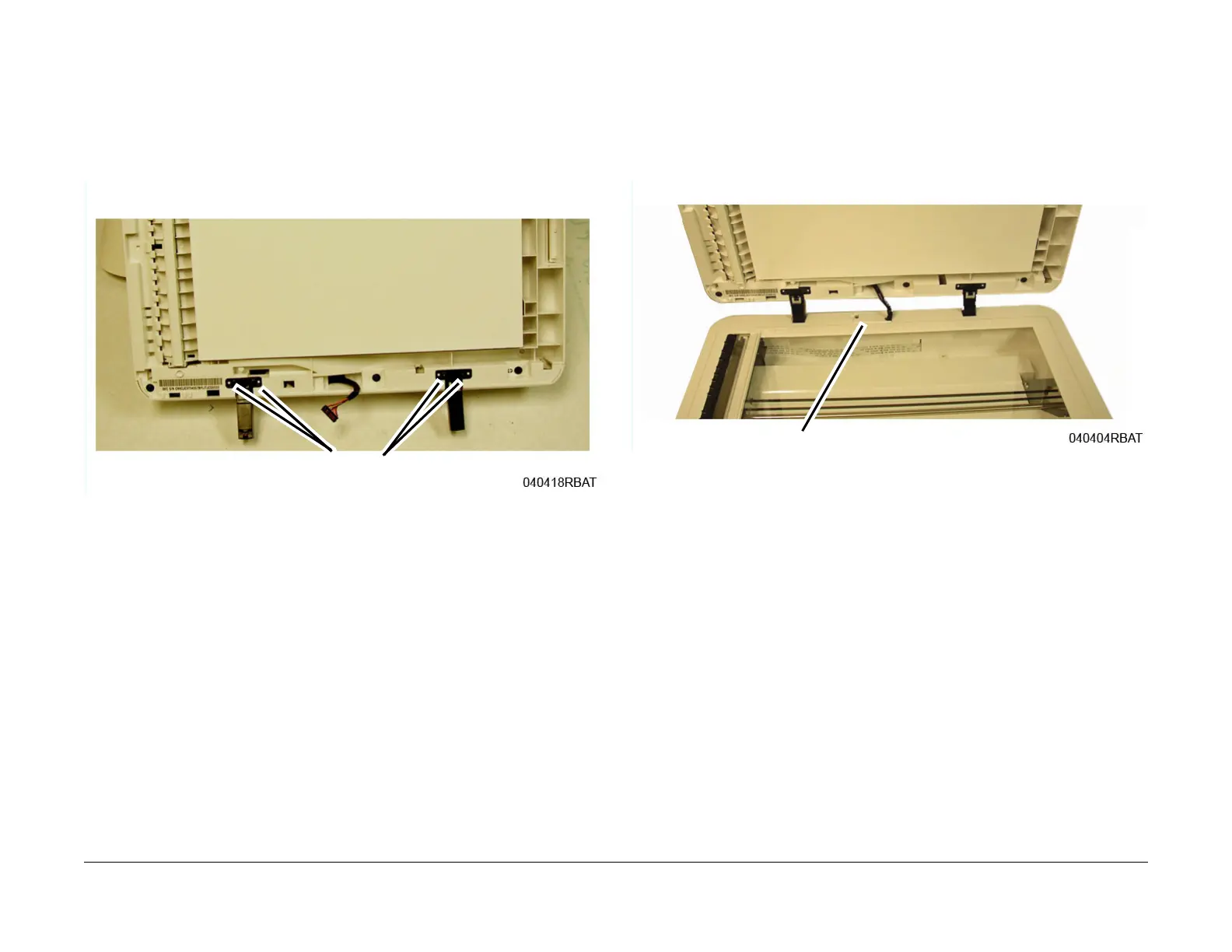

Figure 1 ADF Hinges removal
Replacement
The replacement is the reverse of the removal procedure.
REP 1.4 Automatic Document Feeder (ADF)
Parts List on PL 1.2
Removal
1. Switch off the printer, then disconnect the power cord.
2. Open and lift the ADF up.
3. Unlatch, then remove the Connector Cover, F
igure 1.
Figure 1 ADF Connector Cover removal
