Xerox® B205/B215 Multifunction Printer Service Manual
PL 8.2
Initial Release
Parts Lists

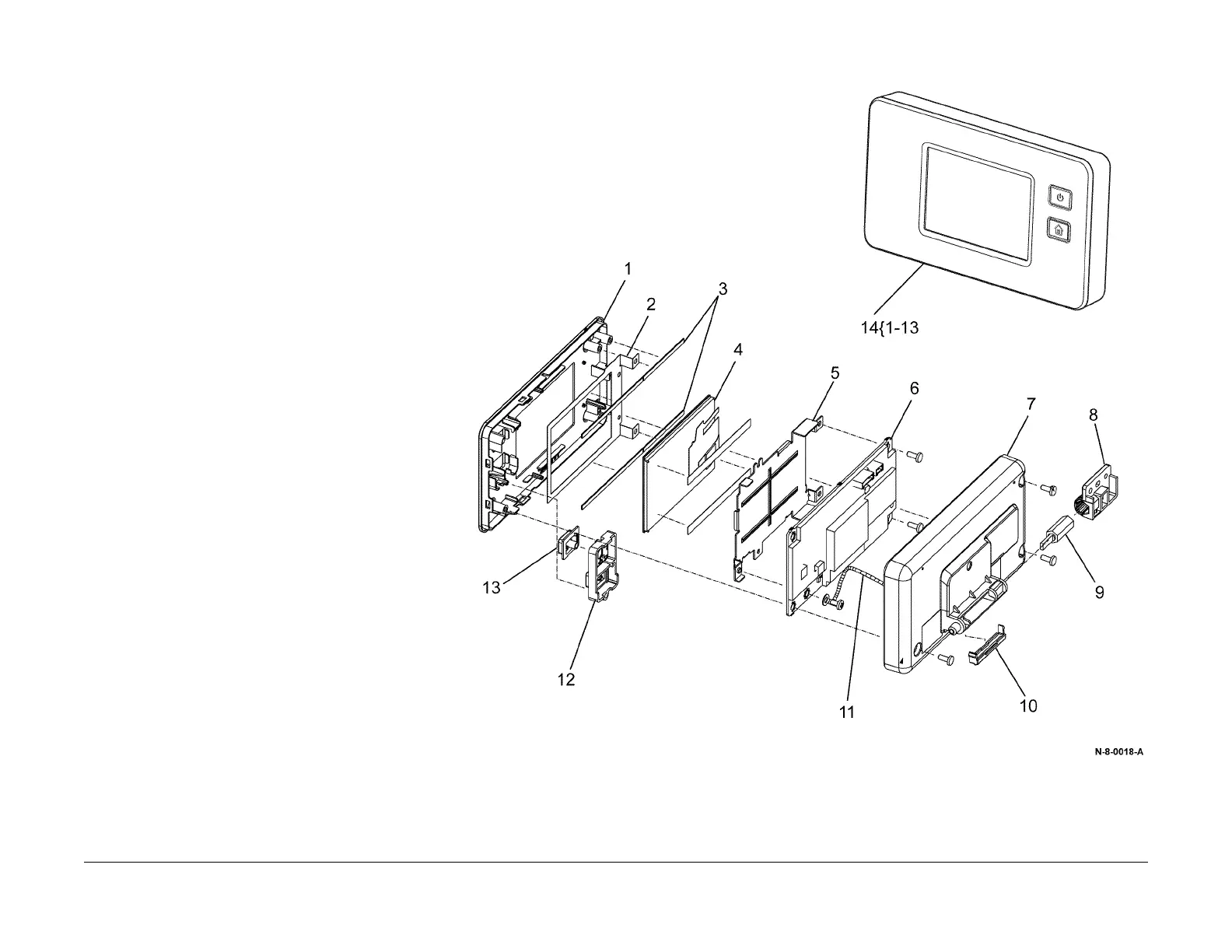

PL 8.2 Control Panel (B215)
Item Part Description
1 – Front Cover
2 – Ground Plate
3 – Seal
4 – LCD Screen (3.5") (RE
P 8.5)
5 – LCD Plate
6 140N63861 Control Panel PWB (RE
P 8.4)
7 –Lower Cover
8 – Hinge Holder
9 – Damper Link
10 – Stopper Cover
11 – Ground Harness
12 – Home Key (RE
P 8.5)
13 – Power Key (REP 8.5)
14 140N63859 Control Panel Assembly (REP 8.3)
