Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9
Initial Release
Repairs / Adjustments
REP 4.9 Registration Roll
Parts List on PL 4.4
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Left and Right Side Covers, R
EP 2.2.
3. Remove the Front Cover, REP 2.1.
4. Remove the Rear Cover, REP 2.3.
5. Remove the Middle Cover, REP 2.5.
6. Remove two screws, then remove the bottom bar, Figure 1.

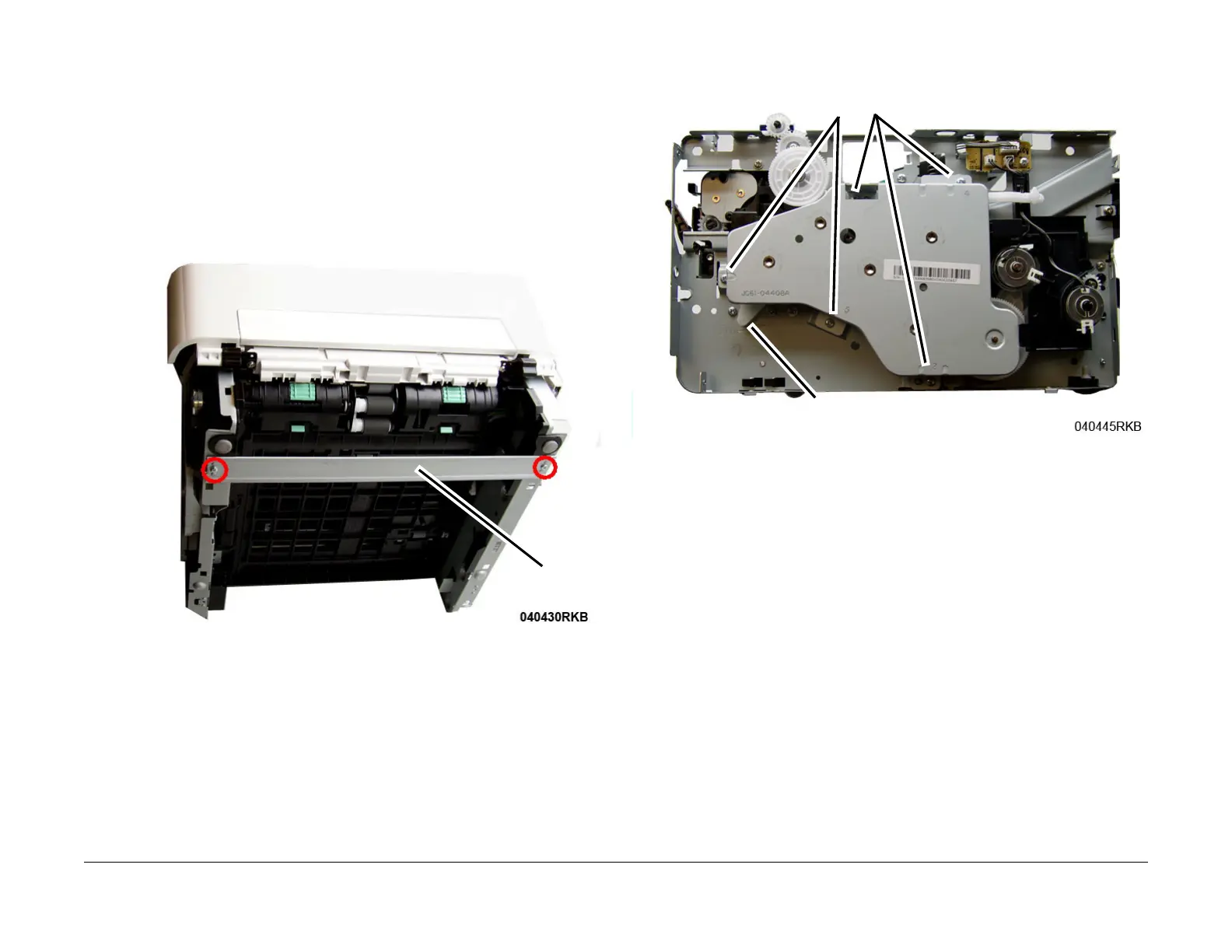

Figure 1 Bottom Bar and Duplex Paper Guide (Bottom View)
7. Remove the Duplex, RE
P 4.6.
8. Remove the Fuser, PL 5.1 Item 26.
9. Remove five screws attaching the Main Drive Unit, then move the Fuser Drive Locking
Le
ver to the unlock position (clockwise), Figure 2
.
Figure 2 Main Drive Unit
