Xerox® B205/B215 Multifunction Printer Service Manual
PL 6.1
Initial Release
Parts Lists

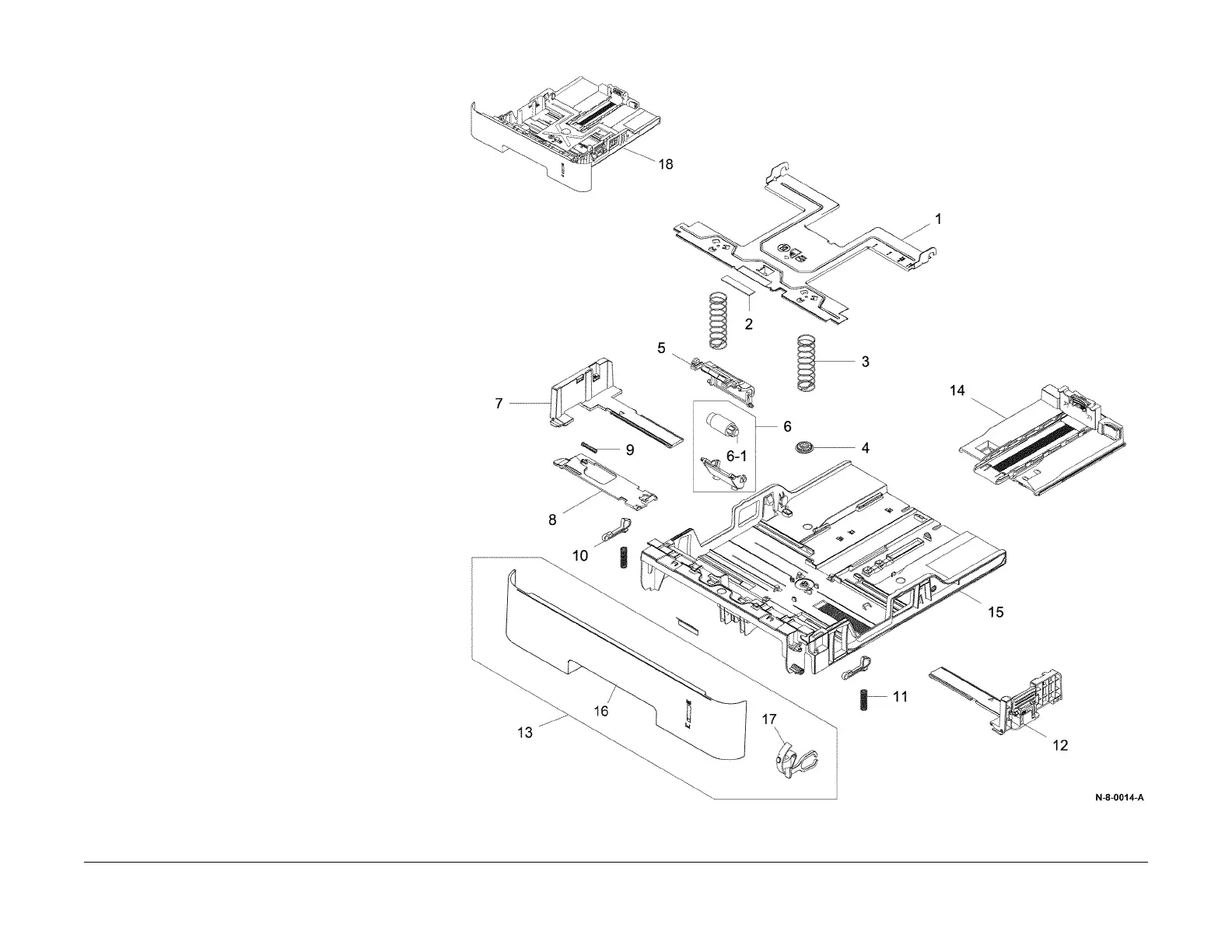

PL 6.1 Paper Tray
Item Part Description
1 –Lift Plate
2 –Pad
3 –Spring
4 – Pinion Gear
5 – Retard Roll Cover
6 050N00683 Retard Roll Assembly (RE
P 6.1)
7 – Left Paper Guide
8 – Latch Plate
9 –Spring
10 – Paper Tray Latch
11 –Spring
12 – Right Paper Guide
13 – Paper Tray Handle
14 – Paper Tray Rear Guide
15 – Paper Tray Frame
16 – Paper Tray Handle
17 – Paper Indicator
18 050N00700 Paper Tray
