REP 1.1 , REP 1.2
Initial Release
Repairs / Adjustments
4. After the machine restarts, print a Configuration Report, refer to GP 2 Machine Reports,
then verify the original machine serial number is displayed under the [Device Profile]
heading.
REP 1.2 ADF / Scanner Assembly
Parts List on PL 1.1
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Control Panel, REP
8.2 (B205), REP 8.2 (B215).
3. Remove the Right Side Cover, REP
2.2.
4. Remove the ADF / Scanner Assembly:
a.
Remove two screws at the rear of the middle cover, Fi
gure 1.

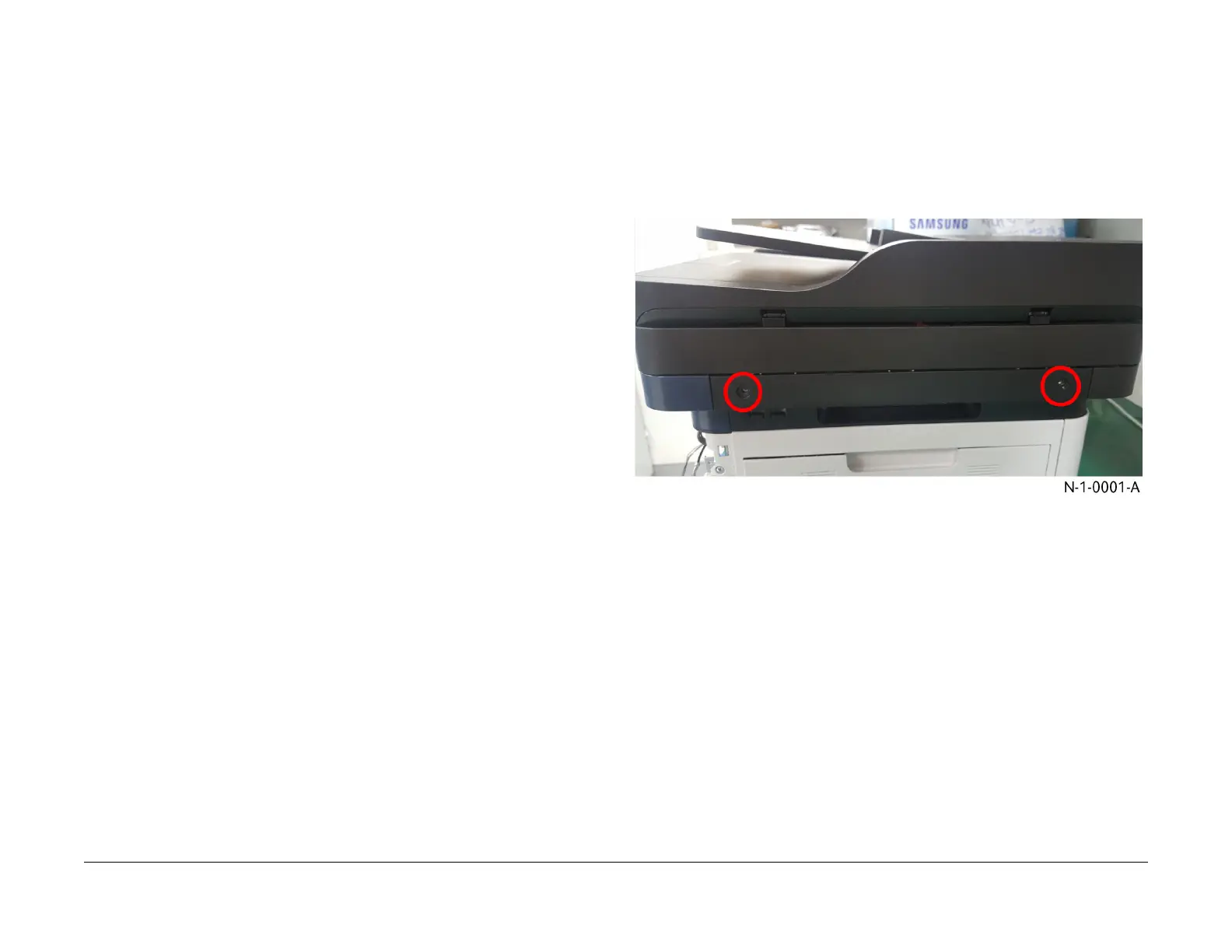

Figure 1 ADF / Scanner screws removal
NOTE: Performing a [Clear All Memory] sets the SA Password back to the default value
(device serial number). Inform the customer to reset SA Password as desired.
NOTE: After performing a Memory Clear, inform the customer that they will need to re-estab-
lish their Wireless or Ethernet connection.
