July 2019
4-68
Xerox® B205/B215 Multifunction Printer Service Manual
REP 8.5
Initial Release
Repairs / Adjustments
REP 8.5 Home Key / Power Key / LCD Screen (B215)
Parts List on PL 8.2
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Control Panel PWB, RE
P 8.4.
3. Remove the Power Key and Home Key from the control panel Front Cover, Figure 1.

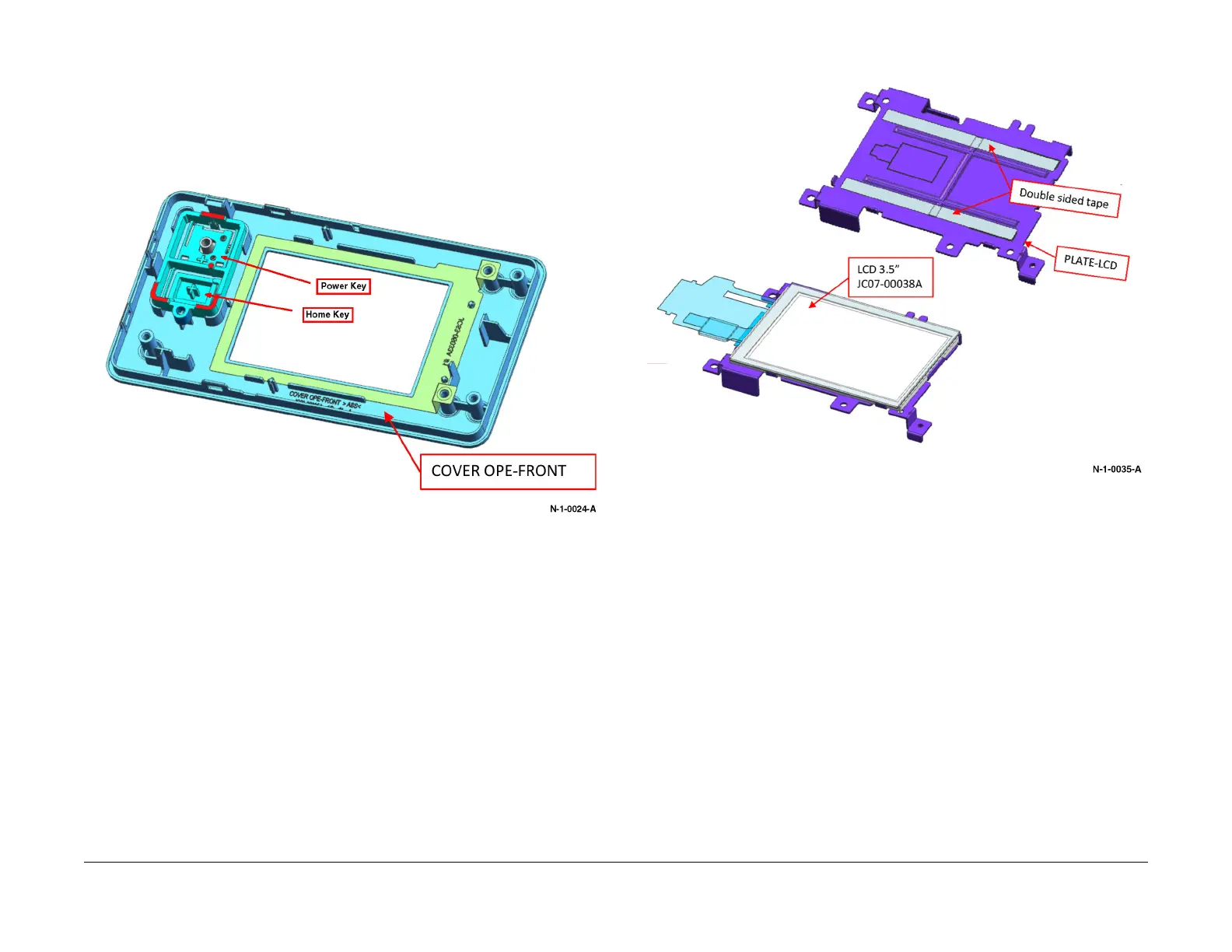

Figure 1 Cover-Stopper removal
4. Carefully separate the LCD Screen from the LCD Plate to remove, F
igure 2.
Figure 2 LCD Screen removal
To Next Page
