July 2019
4-66
Xerox® B205/B215 Multifunction Printer Service Manual
REP 8.3, REP 8.4
Initial Release
Repairs / Adjustments

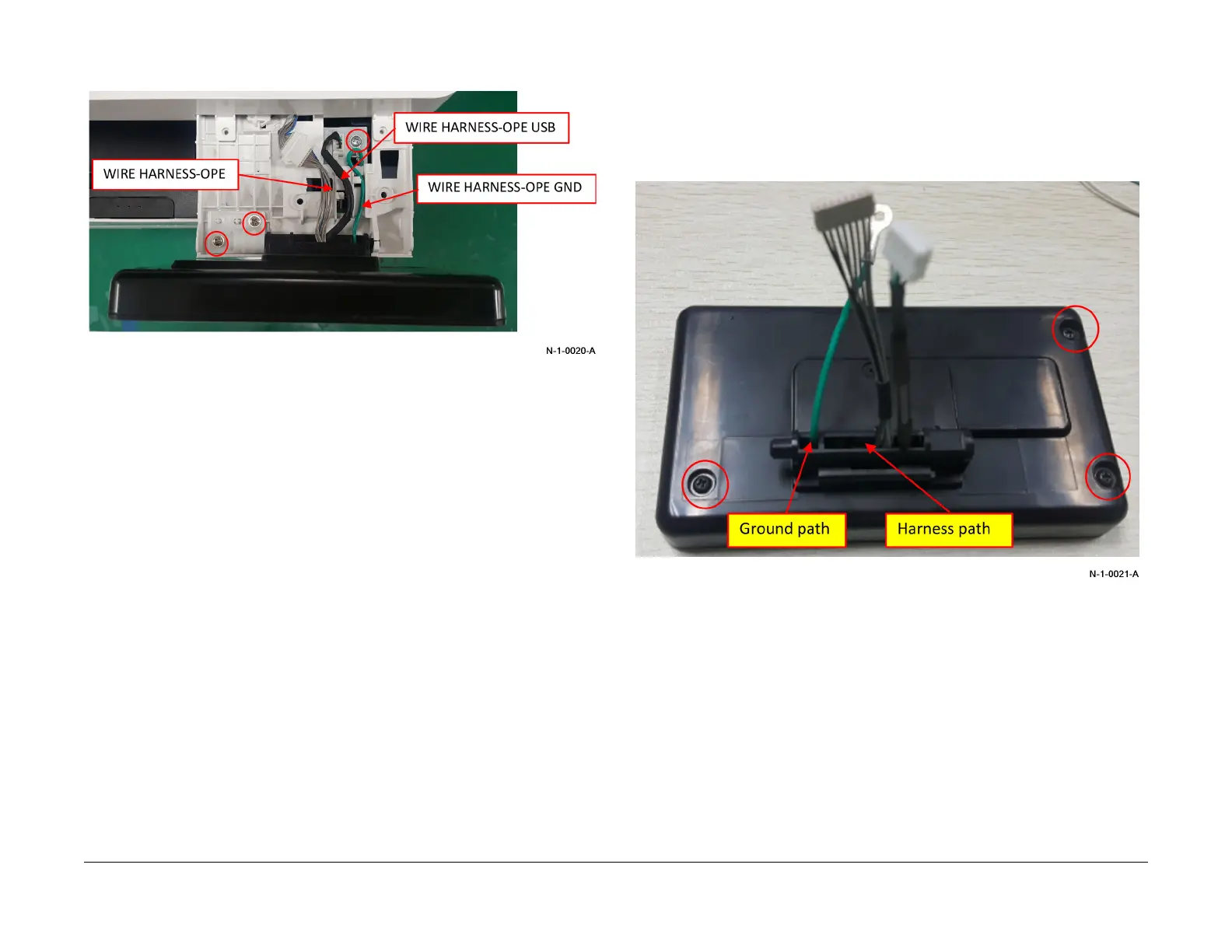

6. Remove three screws, disconnect two connectors and the ground wire, then remove the
Cont
rol Panel, Figure 5
.
Figure 5 Operator panel removal
Replacement
The replacement is the reverse of the removal procedure.
REP 8.4 Control Panel PWB (B215)
Parts List on PL 8.2
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Control Panel, RE
P 8.3.
3. Remove three screws attaching the Lower Cover, then remove the Lower Cover, Figure 1.
Figure 1 Cover-Stopper removal
To Next Page
