July 2019
4-35
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.9, REP 4.10
Repairs / Adjustments
Initial Release

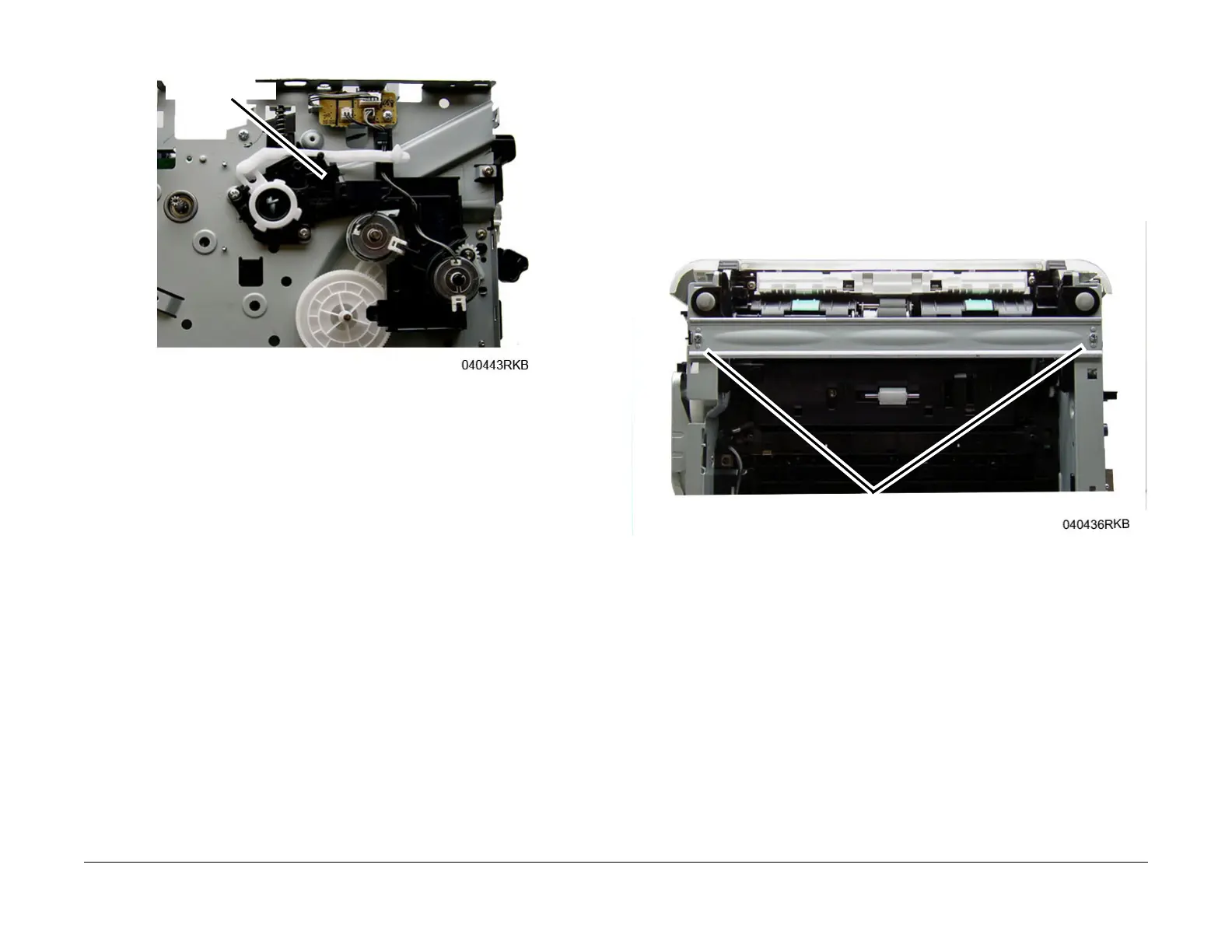

c. Front Cover Support Arm placed correctly on the Stop Bracket, Figure 21.
Figure 21 Front Cover Support Arm Placement
REP 4.10 Paper Feed Sensors PWB and Actuators
Parts List on PL 4.4
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Duplex, RE
P 4.3.
3. Set the printer on the Rear Cover (Front of printer facing up).
4. Remove two screws, then remove the Bottom Bar, F
igure 1.
Figure 1 Bottom Bar (Bottom View)
To Next Page
