Xerox® B205/B215 Multifunction Printer Service Manual
REP 2.1
Repairs / Adjustments
Initial Release
REP 2.1 Front Cover
Parts List on PL 2.1
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Left and Right Side Covers, R
EP 2.2.

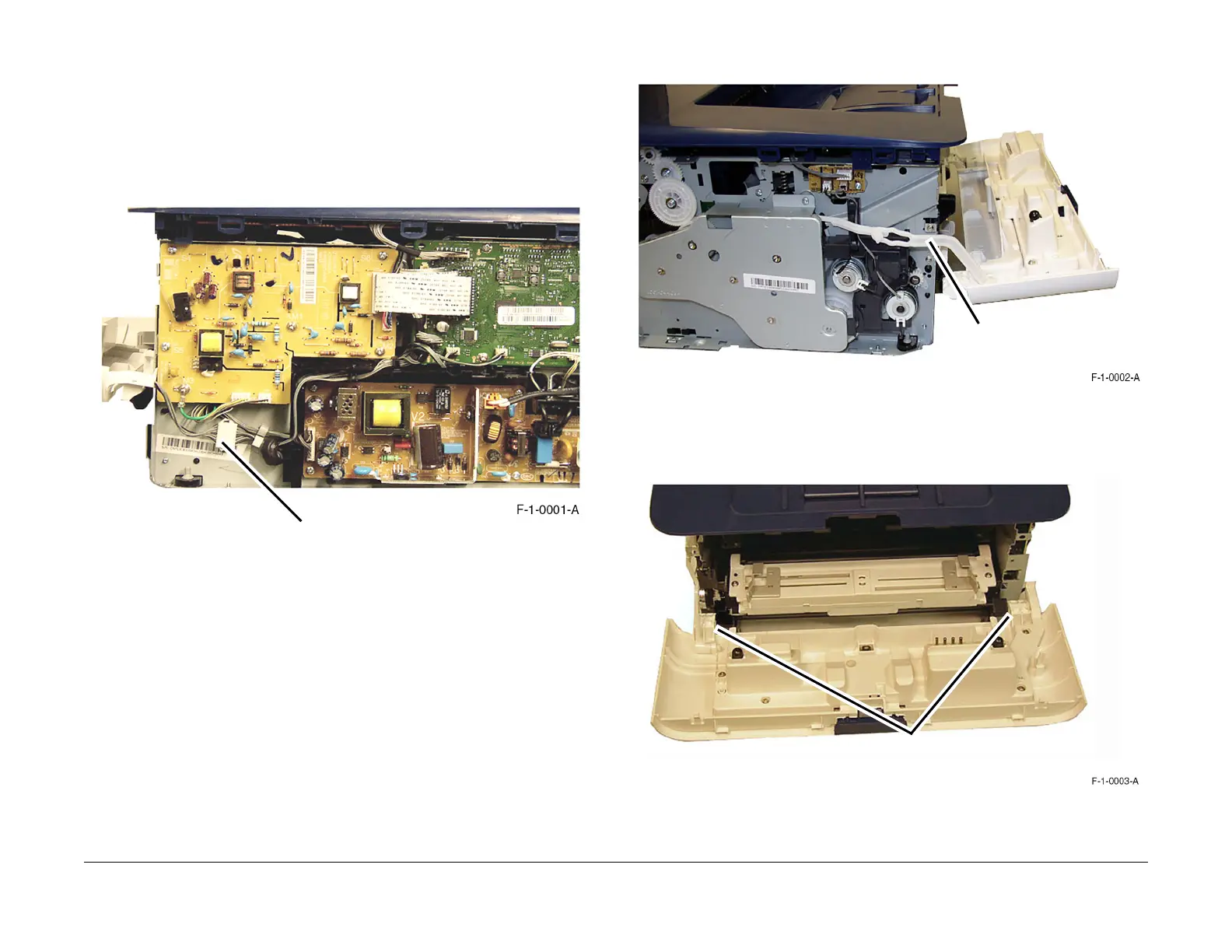

3. Disconnect the connector from the wire harness to the Front Cover, Figure 1.
Figure 1 Front Cover P/J Connector
4. Release the Front Cover Support Arm, Fi
gure 2.
Figure 2 Front Cover Support Arm
NOTE: A wide blade flat screwdriver can be used to help release the Front Cover Pivot.
5. Release two Front Cover Pivots, then remove the cover, F
igure 3.
Figure 3 Front Cover removal
To Next Page
