Xerox® B205/B215 Multifunction Printer Service Manual
PL 2.1
Parts Lists
Initial Release

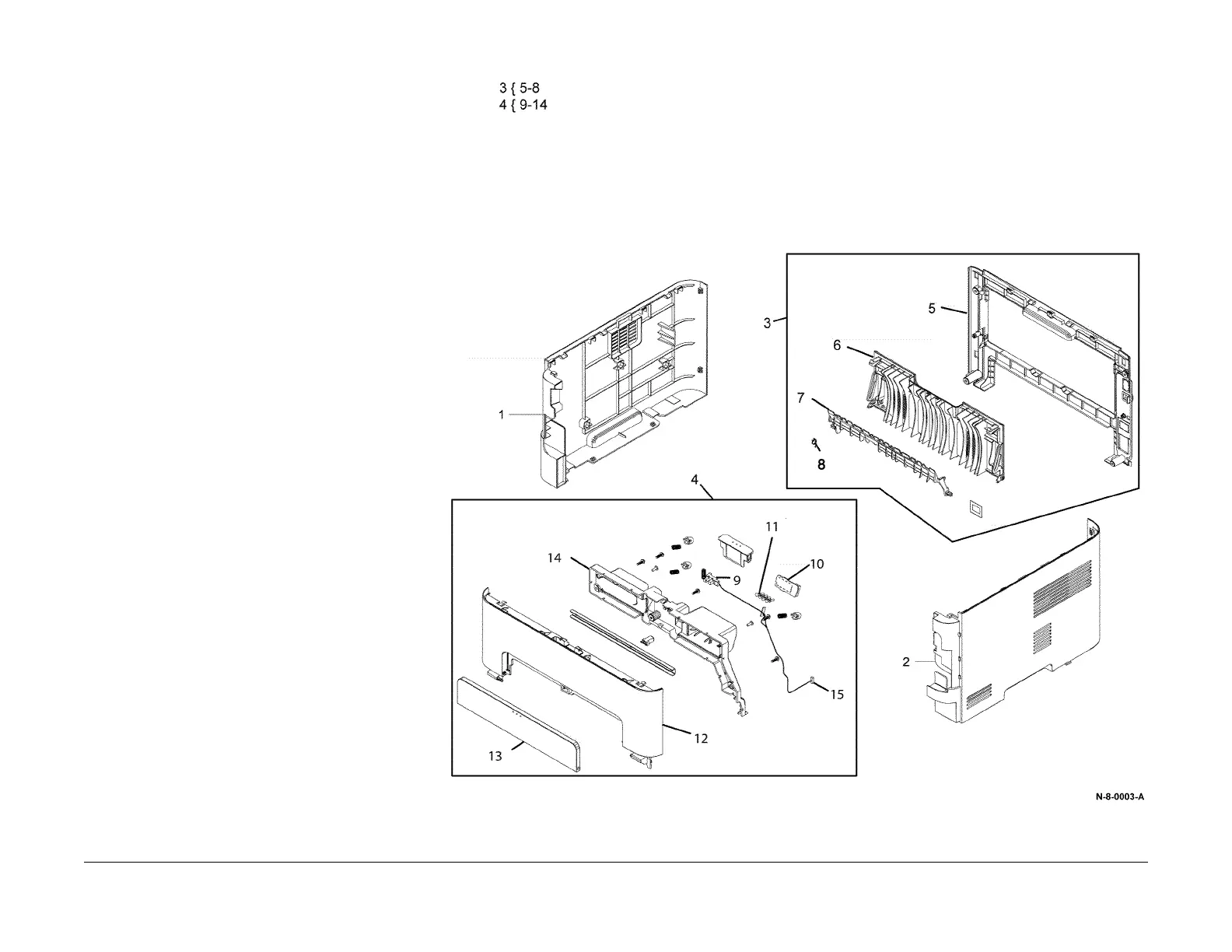

PL 2.1 Covers
Item Part Description
1 – Left Cover (RE
P 2.2)
2 – Right Cover (REP 2.2)
3 002N03172 Rear Cover Assembly (REP 2.3)
4 002N03350 Front Cover Assembly (RE
P 2.1)
5 – Rear Cover (R
EP 2.3)
6 – Exit Paper Guide
7 – Duplex Gate
8 –Spring
9 – Front Cover Latch Sensor
10 –CRUM PWB
11 – CRUM Contacts
12 – Front Cover
13 – Manual Feed Cover (RE
P 2.4)
14 – Front Harness Cover
15 – CRUM Harness
