Xerox® B205/B215 Multifunction Printer Service Manual
PL 4.6
Initial Release
Parts Lists

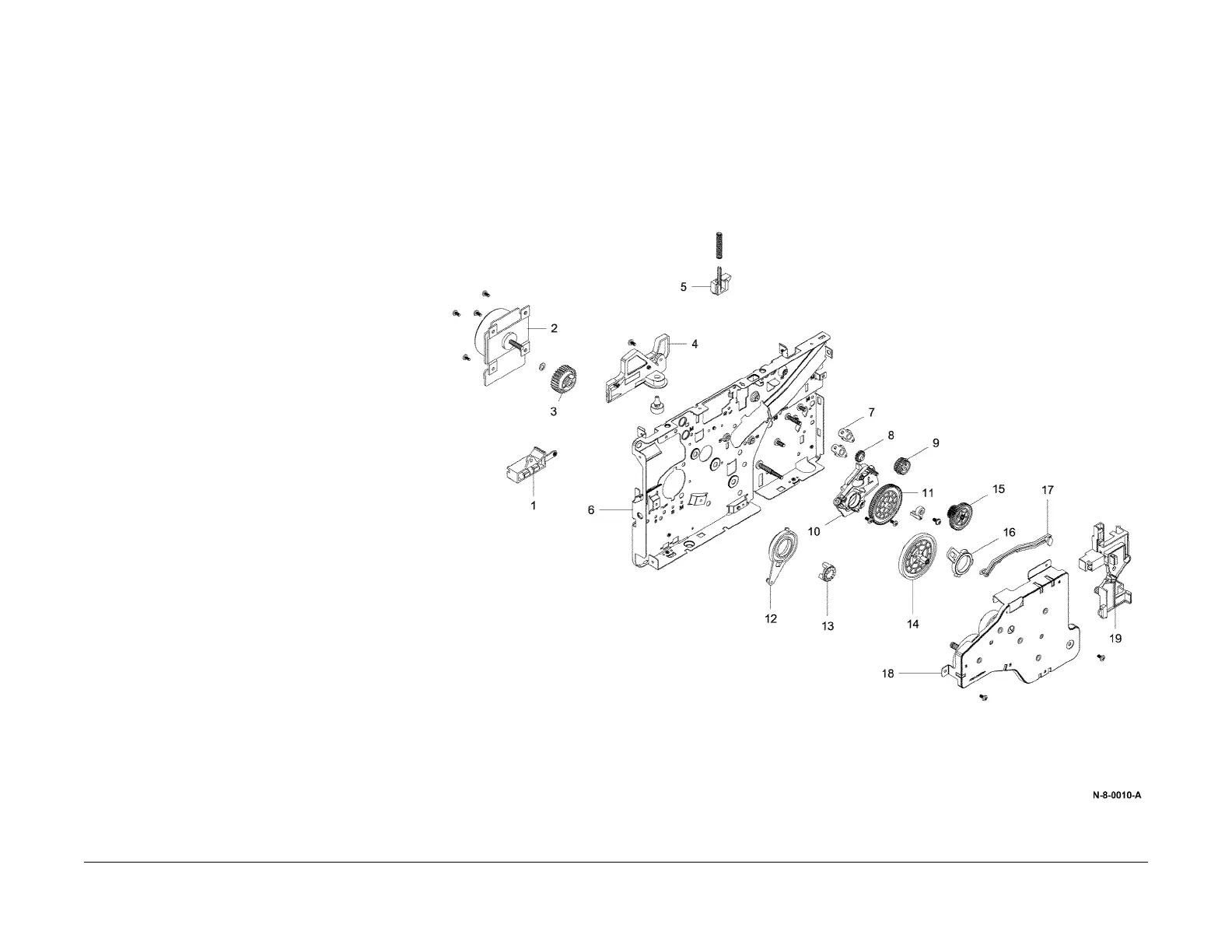

PL 4.6 Left Main Frame
Item Part Description
1 – Left Rear Guide
2 127N07919 Main Drive Motor (RE
P 4.15)
3 – Fuser Drive Out Gear
4 – Knock Up Left Guide
5 – Left Developer Guide Plate
6 – Left Frame
7 – Shaft Bushing
8 007N01802 Paper Feed Idler Gear (REP
4.16)
9 – Idler Gear
10 – Pivot Frame
11 – Idler Gear
12 – Fuser Locking Lever
13 – Hub Clutch Gear
14 – Feed Gear
15 – Feed Gear 2
16 – Cam Coupler
17 – Coupling Lever
18 007N01842 Main Drive Unit (RE
P 4.17)
19 – Harness Cover
