Xerox B205

July 2019
4-44
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.13, REP 4.14
Initial Release
Repairs / Adjustments
Replacement
NOTE: Tapered plastic screws and round machine screws are used to hold the cover to the
frame. Make sure that the plastic screws go into plastic components and machine screws go
into the metal frame.
The replacement is the reverse of the removal procedure.
1. When replacing the Drive Roll in the Feed Assembly lower half make sure the flat on t
he
b
ushing aligns with the flat on the assembly
2. After installing the Feed Assembly upper half, install the two Feed Assembly bottom
scr
ews, then route the wires through the frame, Figure 6.
REP 4.14 Paper Feed Roll Assembly
Parts List on PL 4.5
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Paper Cassette.
3. Remove the Automatic Document Feeder (ADF), RE
P 1.3.
4. Remove the Left and Right Side Covers, REP 2.2.
5. Set the printer so the Front of the printer facing up.
6. Remove two screws, then remove the bottom bar, Fi
gure 1.

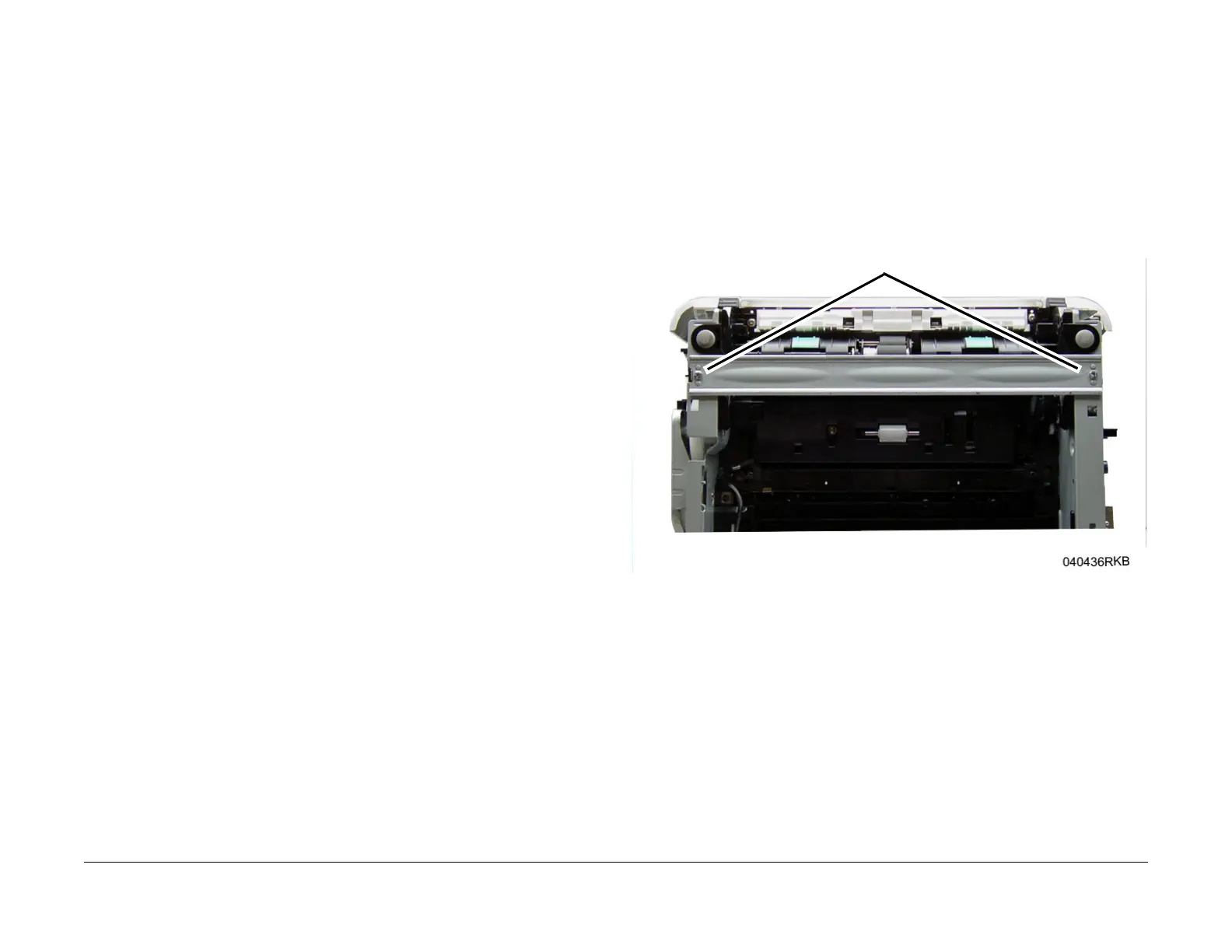

Figure 1 Bottom Bar (Bottom View)
Screws
