July 2019
4-13
Xerox® B205/B215 Multifunction Printer Service Manual
REP 2.2, REP 2.3
Repairs / Adjustments
Initial Release
3. Remove the Right Side Cover, PL 2.1.
a. Release (gently pull) the upper front cover to release the latch hook.
b. Release (gently pull) the lower front cover to release the latch hook.
c. Release the top latch hooks, then the bottom latch hooks on the bottom of the frame.
d. Remove the Right Side Cover.
4. Remove the Left Side Cover, PL
2.1.
a. Release (gently pull) the upper front cover to release the latch hook.
b. Release (gently pull) the lower front cover to release the latch hook.
c. Release the top latch hooks, then the bottom latch hooks on the bottom of the frame.
d. Remove the Left Side Cover.
Replacement
The replacement is the reverse of the removal procedure.
REP 2.3 Rear Cover
Parts List on PL 2.1
Removal
1. Remove the Left and Right Side Covers, REP 2.2.

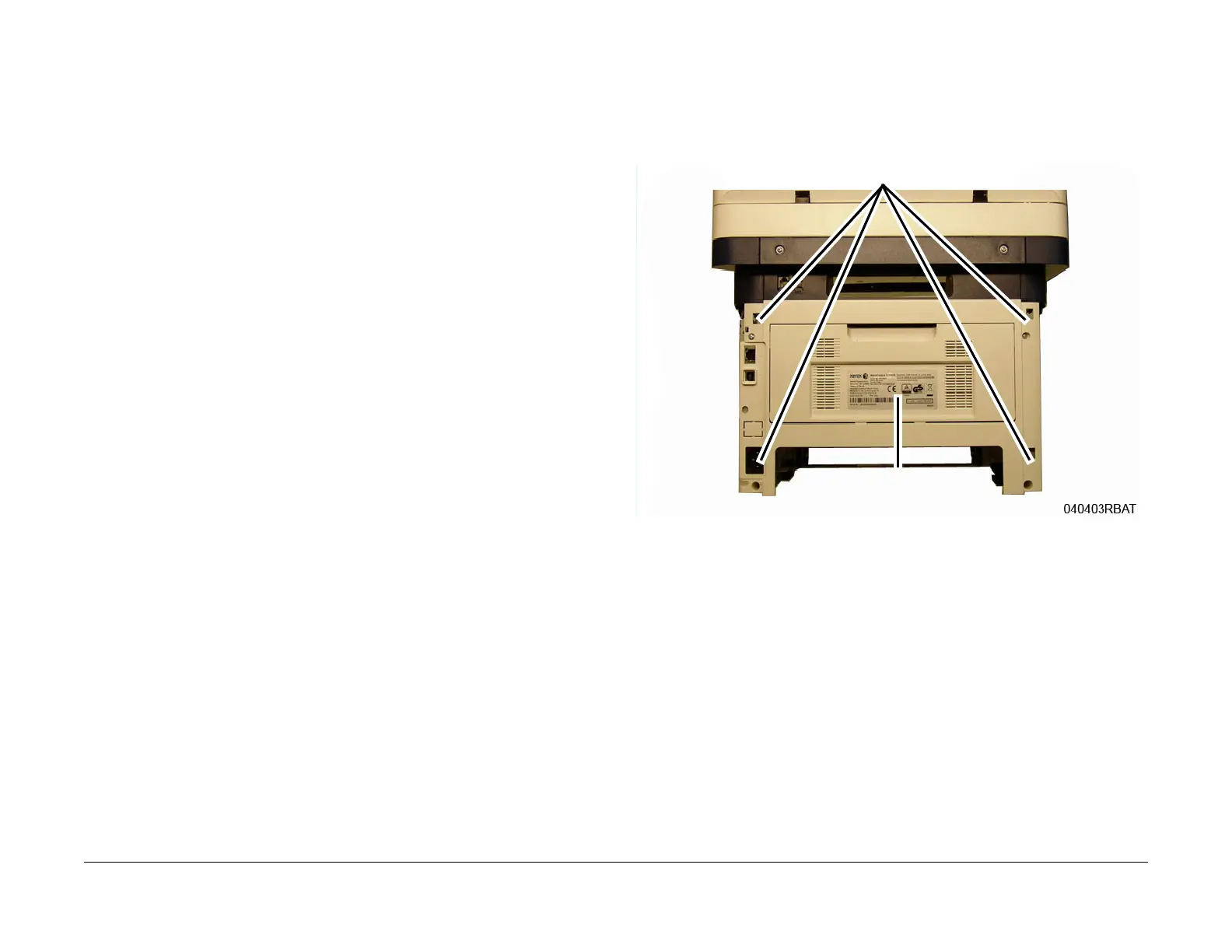

2. Remove four screws from the Rear Cover, Figure 1.
Figure 1 Rear Cover screws removal
