Xerox® B205/B215 Multifunction Printer Service Manual
REP 2.3, REP 2.4
Initial Release
Repairs / Adjustments
3. Open the Rear Cover, then release the support arm on each side of the cover, Figure 2.

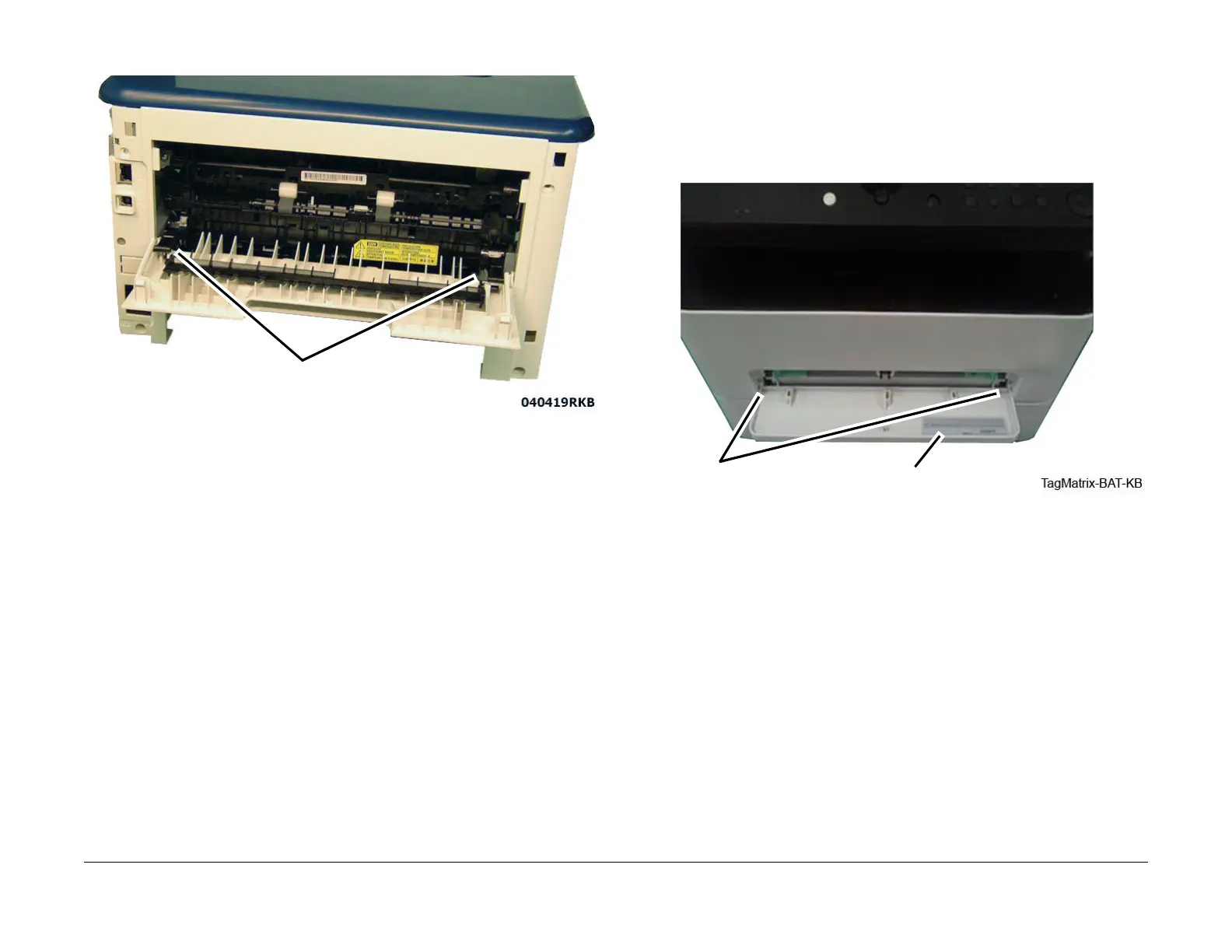

Figure 2 Support Arms
4. Push down on the top of the Rear Cover to release the latch hooks, then remove the R
ear
Co
ver.
Replacement
The replacement is the reverse of the removal procedure.
Important: W
hen installing a new Rear Cover, remove the Data Plate Label from the old Rear
Cover and install it onto the new Rear Cover, Figure 1.
REP 2.4 Manual Feed Cover
Parts List on PL 2.1
Removal
1. Release two pivots, then remove the Manual Feed Cover, Figure 1.
Figure 1 Manual Feed Cover (Top View)
Replacement
1. The replacement is the reverse of the removal procedure.
NOTE: Remove the Tag Matrix from the old cover and install it on to t
he new Manual
F
eed Cover, Figure 1
.
