Xerox® B205/B215 Multifunction Printer Service Manual
REP 2.5
Repairs / Adjustments
Initial Release
REP 2.5 Middle Covers
Parts List on PL 2.2
Removal
1. Remove the Left and Right Side Covers, REP 2.2.
2. Remove the ADF / Scanner Assembly, RE
P 1.2.
3. Remove the Rear Cover, REP 2.3.
4. Disconnect the WiFi PWB connector from the Main PWB, Figure 1.

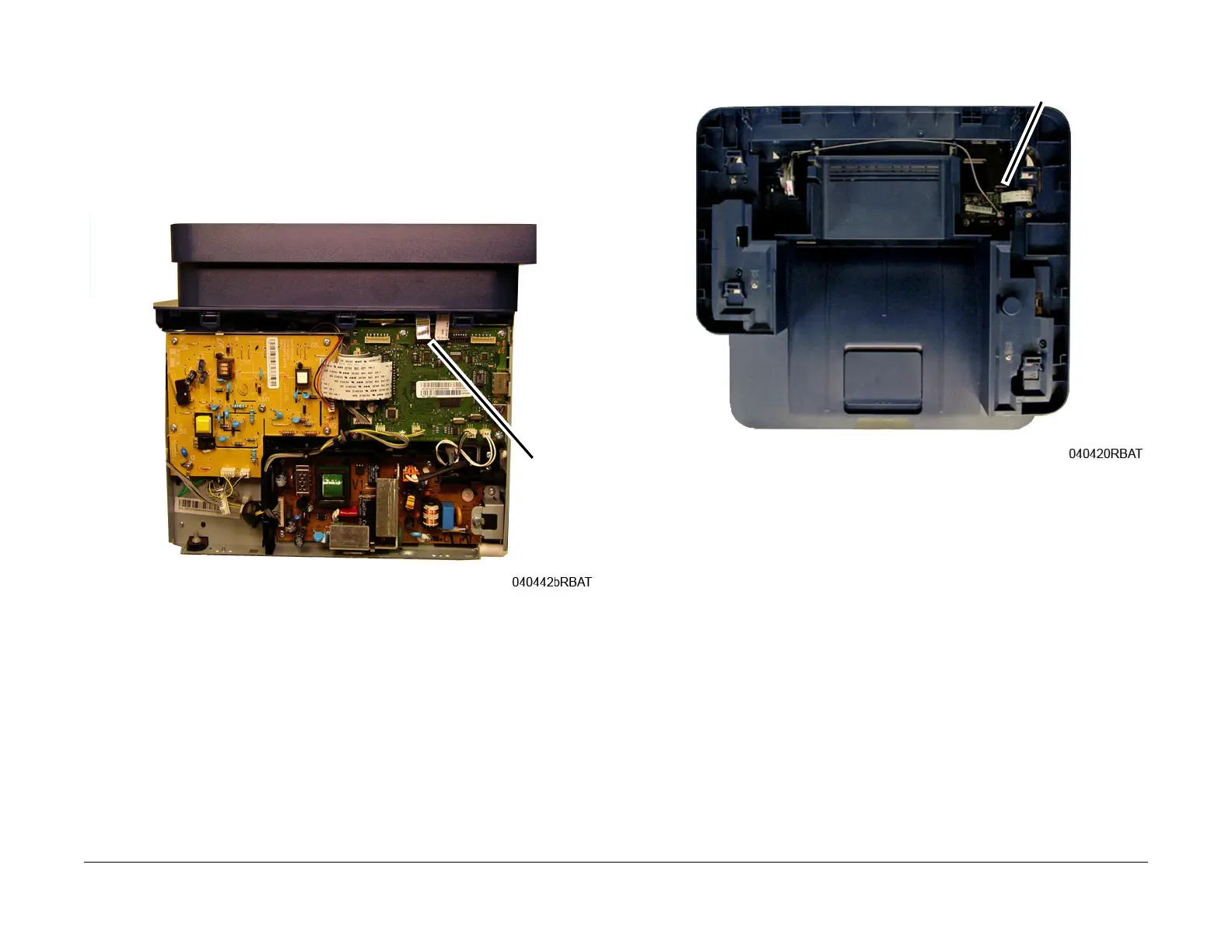

Figure 1 Wireless (WiFi) Connector (B215)
5. Disconnect the FAX PWB connector (B215), F
igure 2.
Figure 2 FAX PWB connector (B215)
