July 2019
3-6
Xerox® B205/B215 Multifunction Printer Service Manual
IQ4, IQ5
Initial Release
Image Quality
IQ4 Spots RAP
Random or periodic dark areas in the low density areas of a print, or voids in the dark areas of
a print, Figure 1.
Initial Actions
Ensure that the Drum Cartridge is firmly seated.
Procedure
Check the Transfer Roller for wear, damage; and remaining life, refer to GP 6 Machine
Reports. The Transfer Roller is OK.
YN
Install a new Transfer Roller, PL
4.1 Item 10.
Switch off the power.
Clean the contacts on the following components:
Toner Cartridge
Drum Cartridge
HVPS PWB
Switch on the power and make a test print. The test print looks OK.
YN
Install a new Toner Cartridge. Refer to the Xerox® B215/B205 User Guide for detailed
inst
ructions on how to Install a new Toner Cartridge.
If the fault persists, Install a new Fuser Module, P
L 5.1 Item 26.

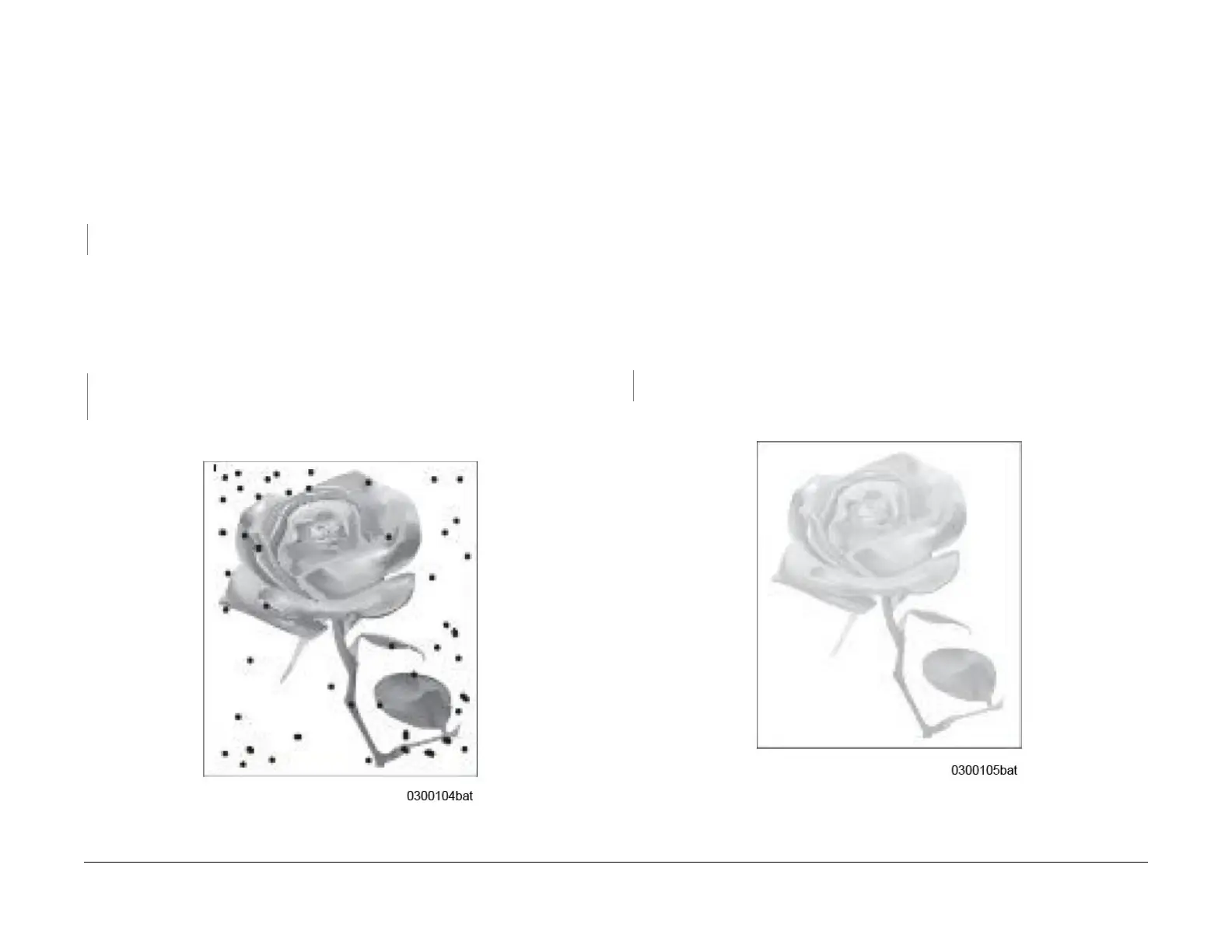

Figure 1 Black Spots
IQ5 Low Image Density RAP
The printed image is light, with no ghosting, Figure 1.
Initial Actions
Remove Toner Cartridge. Rotate the cartridge 5-6 full rotations to redistribute the toner. Make a
test print.
Check the life of the Toner Cartridge, refer to GP
6 Machine Reports. Install a new Toner Car-
tridge if it has reached end of life, refer to t
he Xerox® B215/B205 User Guide for detailed
instructions on how to Install a new Toner Cartridge.
If the problems continue, follow the procedure.
Procedure
Switch off the power.
Clean the terminals on the HVPS PWB and the Toner Cartridge.
Switch on the power and make a test print.
The problem continues.
YN
Go to Call Closeout.
Install a new HVPS PWB, PL
4.1 Item 2.
Figure 1 Light Image
