Xerox® B205/B215 Multifunction Printer Service Manual
REP 7.2
Repairs / Adjustments
Initial Release
REP 7.2 Scanner Module
Parts List on PL 7.1 (B205)
Parts List on PL
7.2 (B215)
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the ADF, RE
P 1.2.
3. Remove the Control Panel, REP 8.2 (B205), REP 8.2 (B215).
4. Remove the Right Side Cover, RE
P 2.2.
5. Remove two screws at the rear of the middle cover, Figure 1.

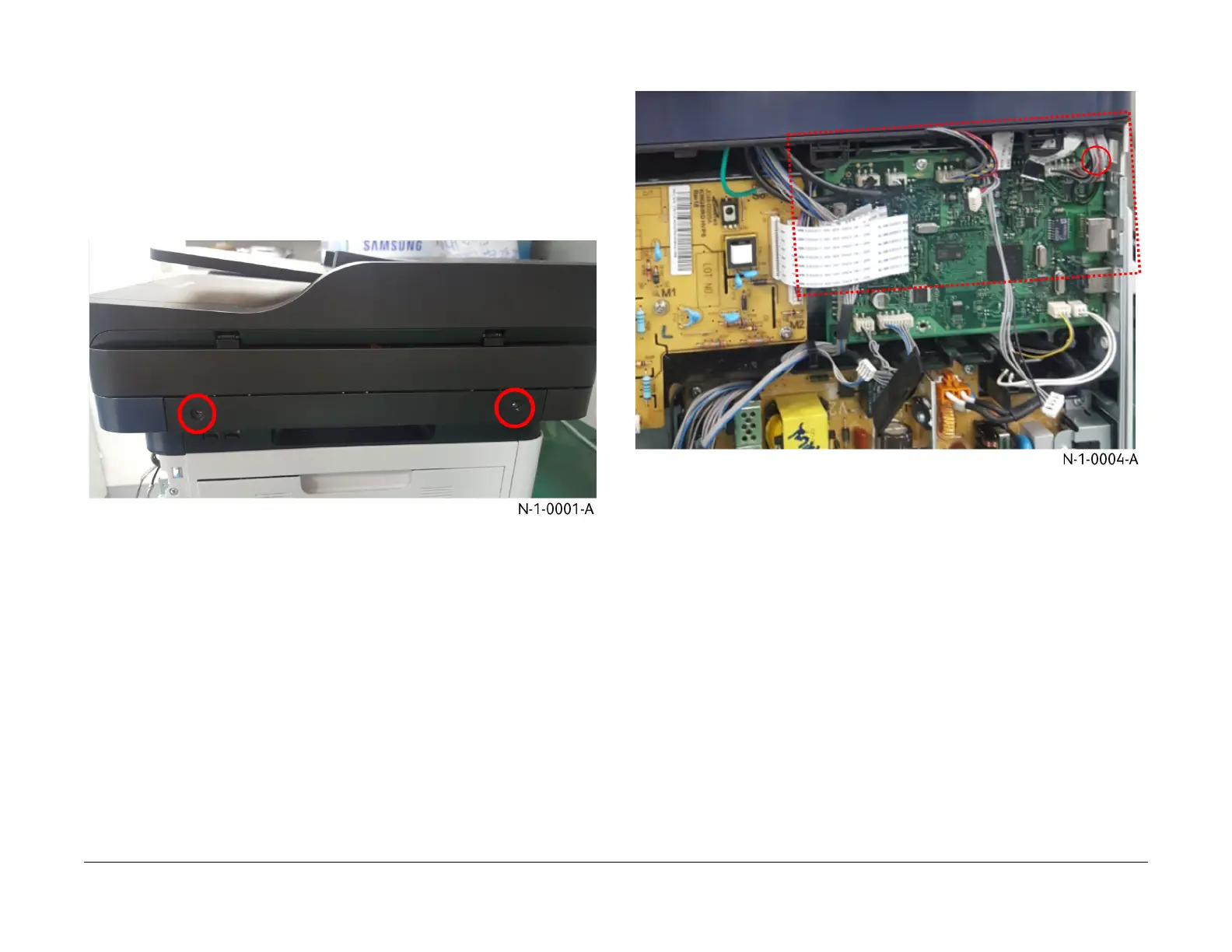

Figure 1 Scanner screw removal
6. Disconnect the harnesses from the Main PWB to the ADF / Scanner Assembly and t
he
g
round screw, Figure 2
.
Figure 2 Disconnect harnesses and ground wire
To Next Page
