Xerox B205

July 2019
4-60
Xerox® B205/B215 Multifunction Printer Service Manual
REP 7.1
Initial Release
Repairs / Adjustments
Replacement

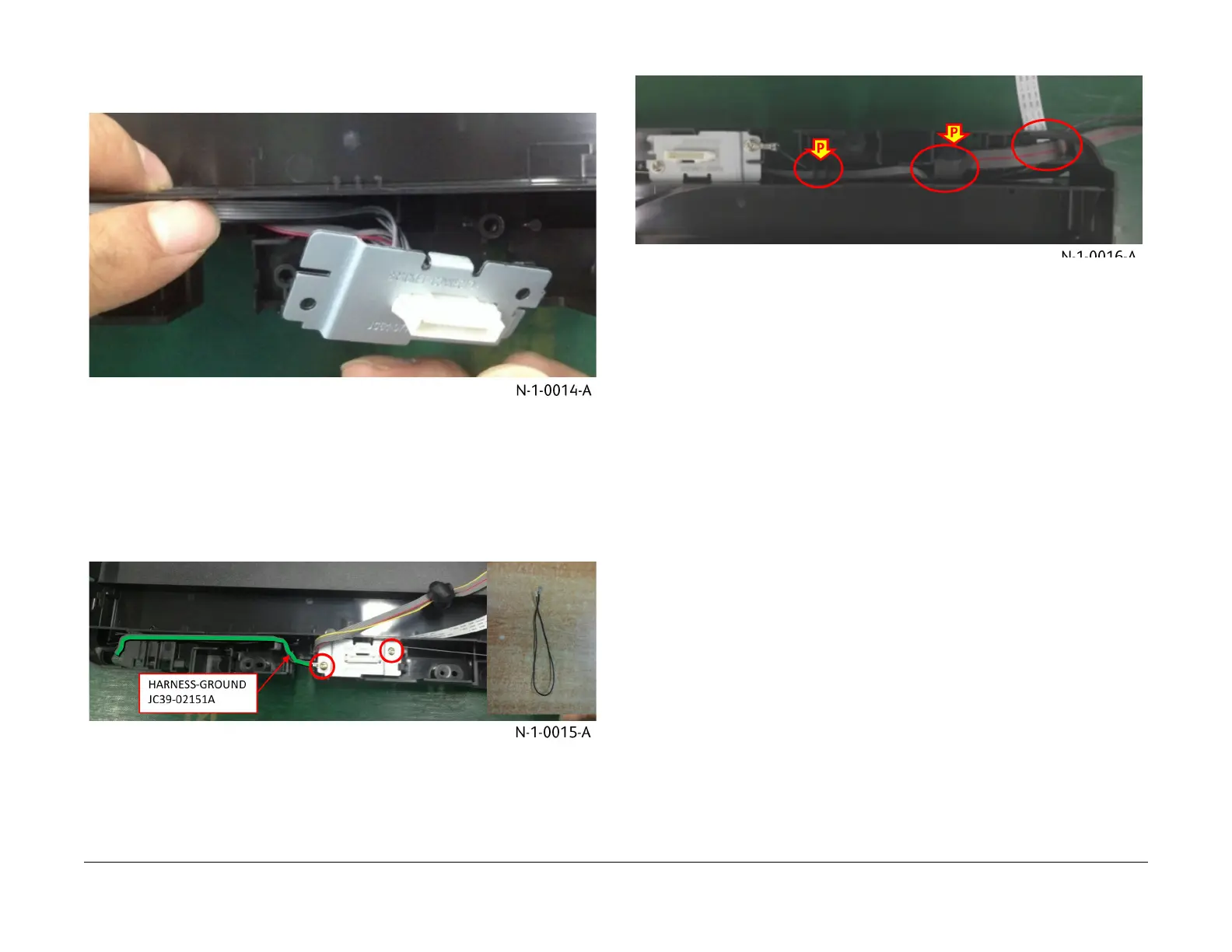

1. Begin by aligning the bracket to the mounting screw holes in the lower scanner frame,
then dress the harness back into the lower scanner frame harness guides, Figure 4
.
Figure 4 Bracket and harness alignment
2. Replace the screw on the right, first, then properly route and attach the ground wire to t
he
b
racket with the left screw, Figure 5
.
NOTE: Ensure the bracket is correctly in-place within the lower scanner frame as shown
in F
igure 6.The slot in the bracket near the ground screw and the tab near the o
pposing
scr
ew must be aligned and inserted correctly before tightening the screws to avoid dam-
age.
Figure 5 Bracket replacement
3. Ensure the harnesses and bracket are routed as shown in, F
igure 6.
Figure 6 Harness routing
Continue the replacement in the reverse of the removal procedure.
