Xerox B205

July 2019
4-59
Xerox® B205/B215 Multifunction Printer Service Manual
REP 7.1
Repairs / Adjustments
Initial Release

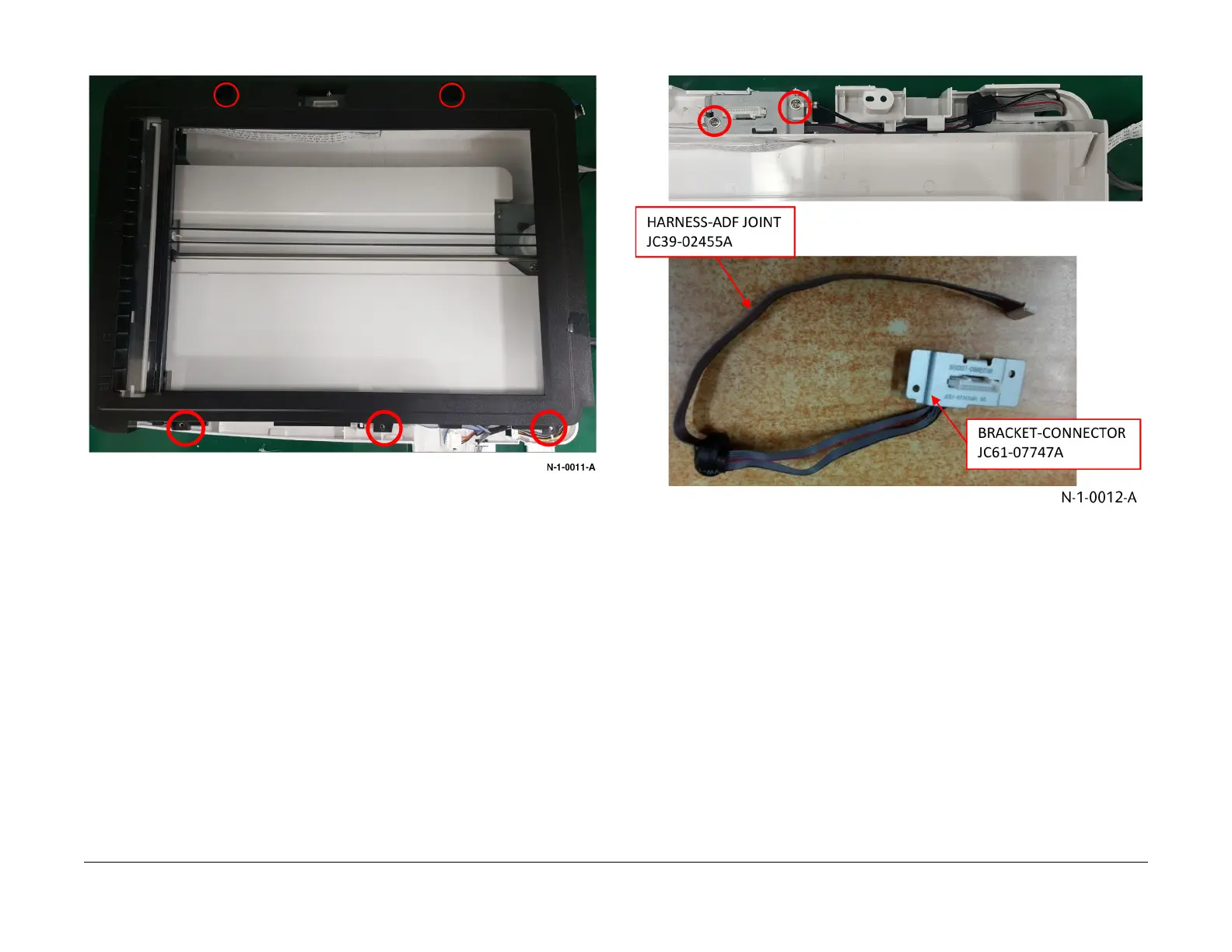

4. Remove five screws, then remove the Upper Scanner Frame, Figure 2.
Figure 2 Upper scanner frame removal
5. Remove two screws, then remove the Bracket-Connector and harness, F
igure 3.
Figure 3 Bracket-Connector removal
