Xerox® B205/B215 Multifunction Printer Service Manual
REP 2.5
Initial Release
Repairs / Adjustments
NOTE: When installing a new Middle Cover in the B215 machine; remove the FAX PWB, REP
2.6, and the Speaker, PL 2.2, from the old Middle Cover, then install to the new Middle Cover.
6. Remove three screws from top of the Middle Cover, F
igure 3.
NOTE: The screws are located at the bottom of the side cover openings.

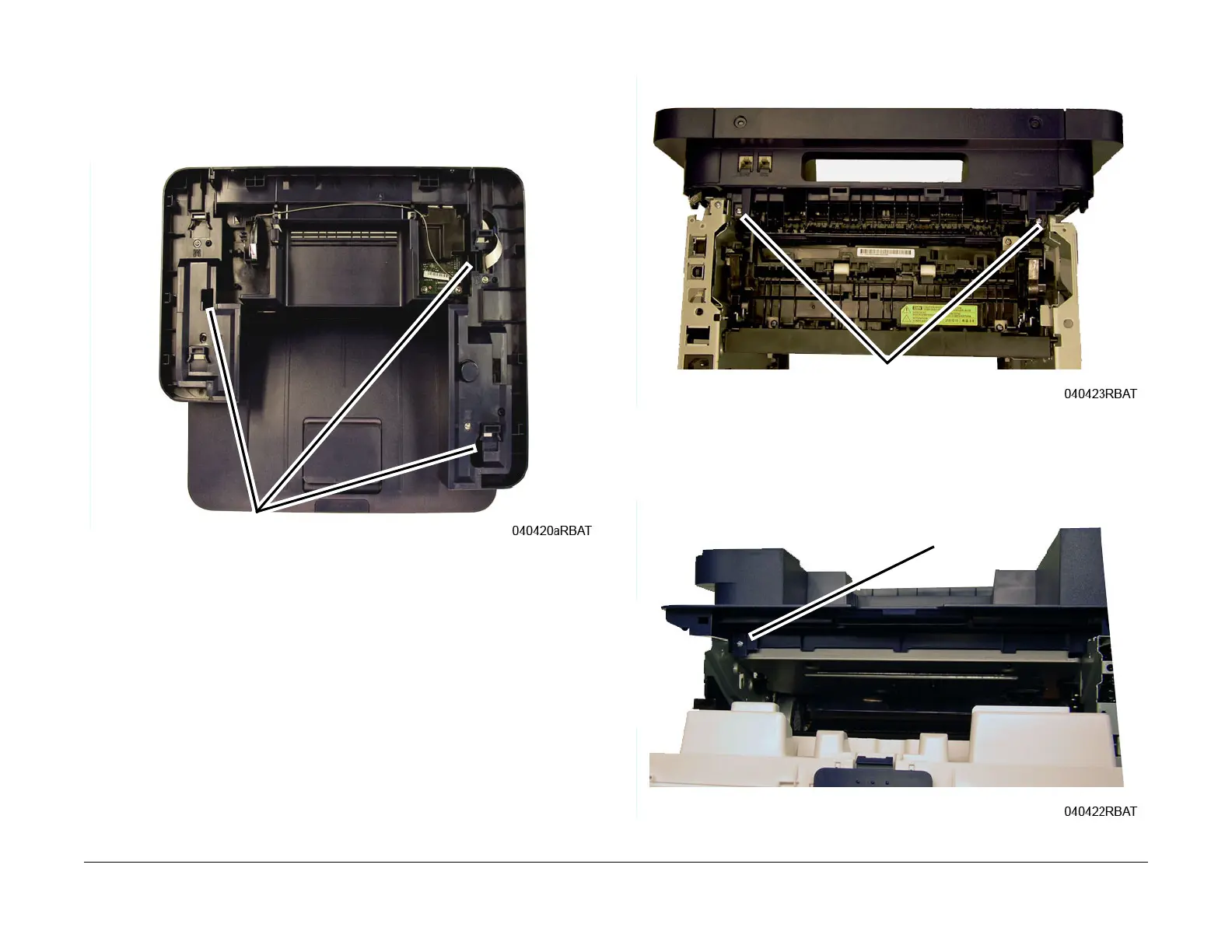

Figure 3 Middle Cover screws (Top View)
7. Remove two screws securing the rear of the Middle Cover, F
igure 4.
Figure 4 Middle Cover rear screws removal
8. Release the latch next the front screw, then remove the Middle Cover.
9. Remove the screw securing the front, then remove the Middle Cover, F
igure 5.
Figure 5 Middle Cover front screw removal
