July 2019
4-43
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.13
Repairs / Adjustments
Initial Release

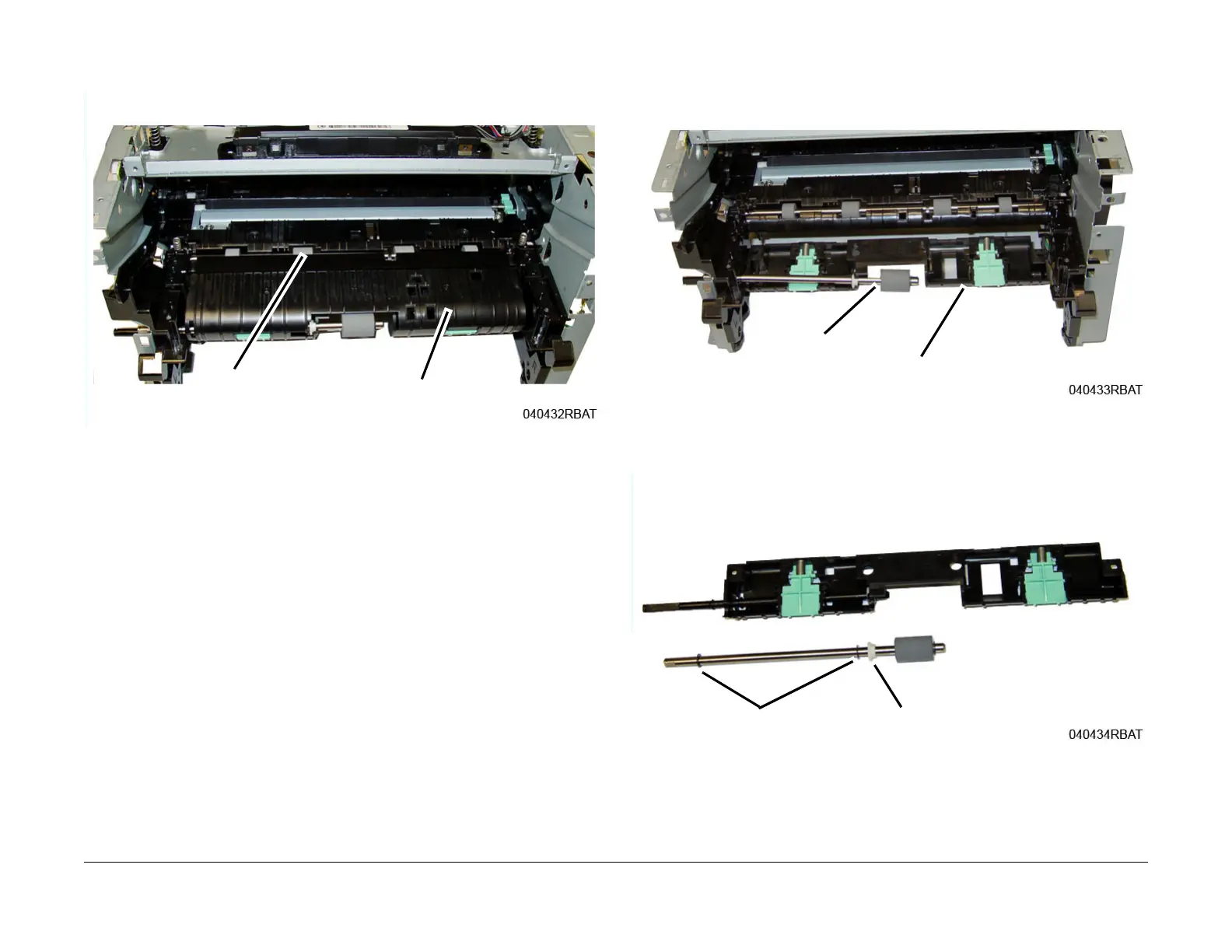

10. Lift the Pinch Rolls and Paper Guide out of the printer, then remove the Feed Assembly
upper half
, Figure 8
.
Figure 8 Registration Pinch Rolls and Paper Guide
11. Remove the Feed Assembly lower half, then remove the Drive Roll from the Feed Assem-
bly lower half, F
igure 9.
Figure 9 Feed Assembly Lower Half
12. Remove the snap rings and bushing from the Drive Roll Shaft, F
igure 10.
Figure 10 Drive Roll
Pinch Rolls &
Paper Guide
Upper Half
To Next Page
