July 2019
4-42
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.13
Initial Release
Repairs / Adjustments

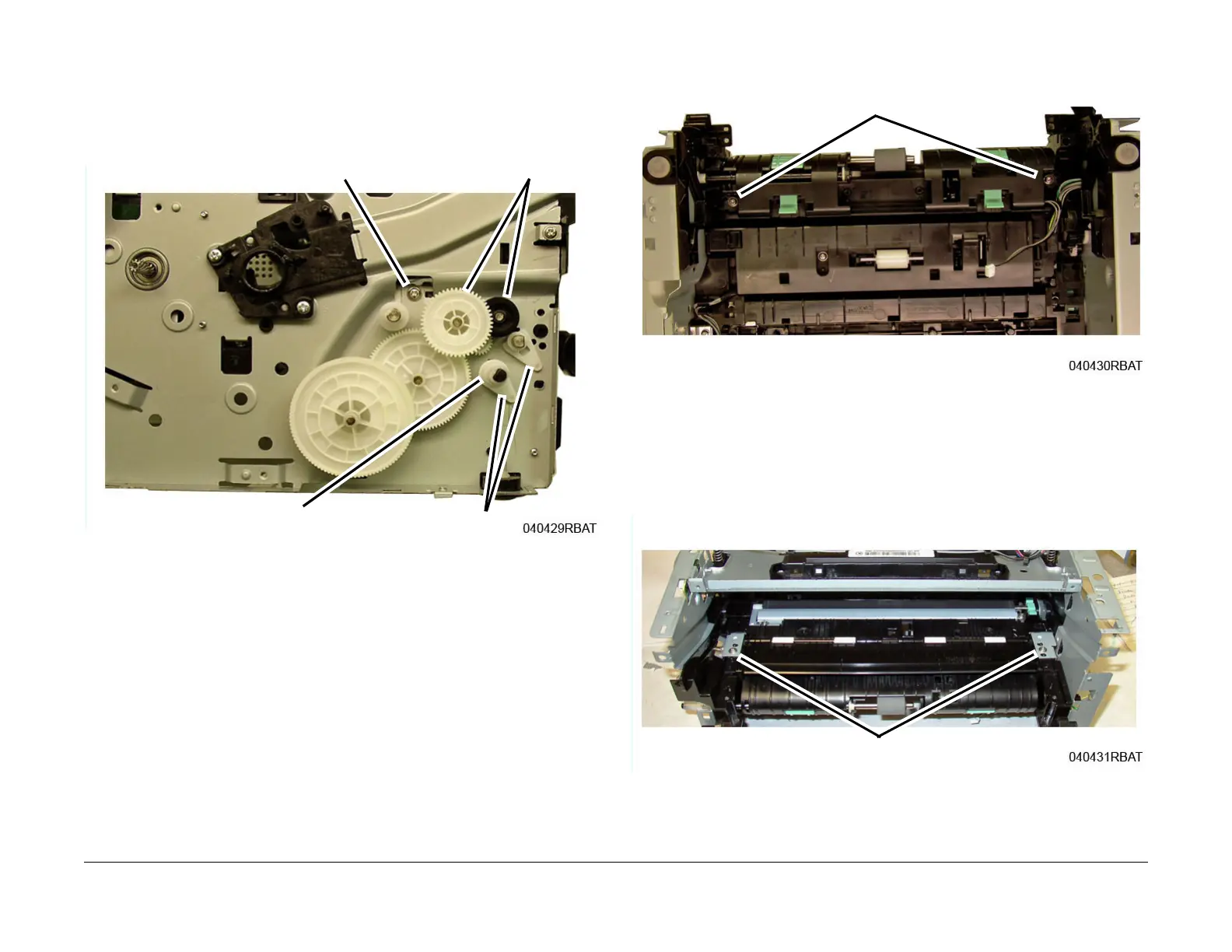

7. Remove the following parts, Figure 5:
a. Remove the Drive Gears.
b. Remove the snap ring, then remove the Feed Clutch Bushing.
c. Release the latch and rotate the bushing, the remove the Feed Shaft Bushings.
d. Remove the screw of the Feed Assembly.
Figure 5 Feeder Drives
8. Remove two screws from the bottom of the Feed Assembly, F
igure 6.
Figure 6 Feeder Assembly Bottom Screws (Bottom View)
CAUTION
The brackets holding the registration pinch rolls and guide are spring loaded. Maintain light
press
ure on the brackets when removing them to avoid damaging parts or personal injury.
9. Remove two screws, then remove the Registration Pinch Rolls and Paper Guide Brackets,
F
igure 7
.
Figure 7 Registration Pinch Rolls and Paper Guide Brackets
Clutch Bushing
Drive Gears
Screw
Feed Shaft Bushings
To Next Page
