July 2019
4-36
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.10
Initial Release
Repairs / Adjustments

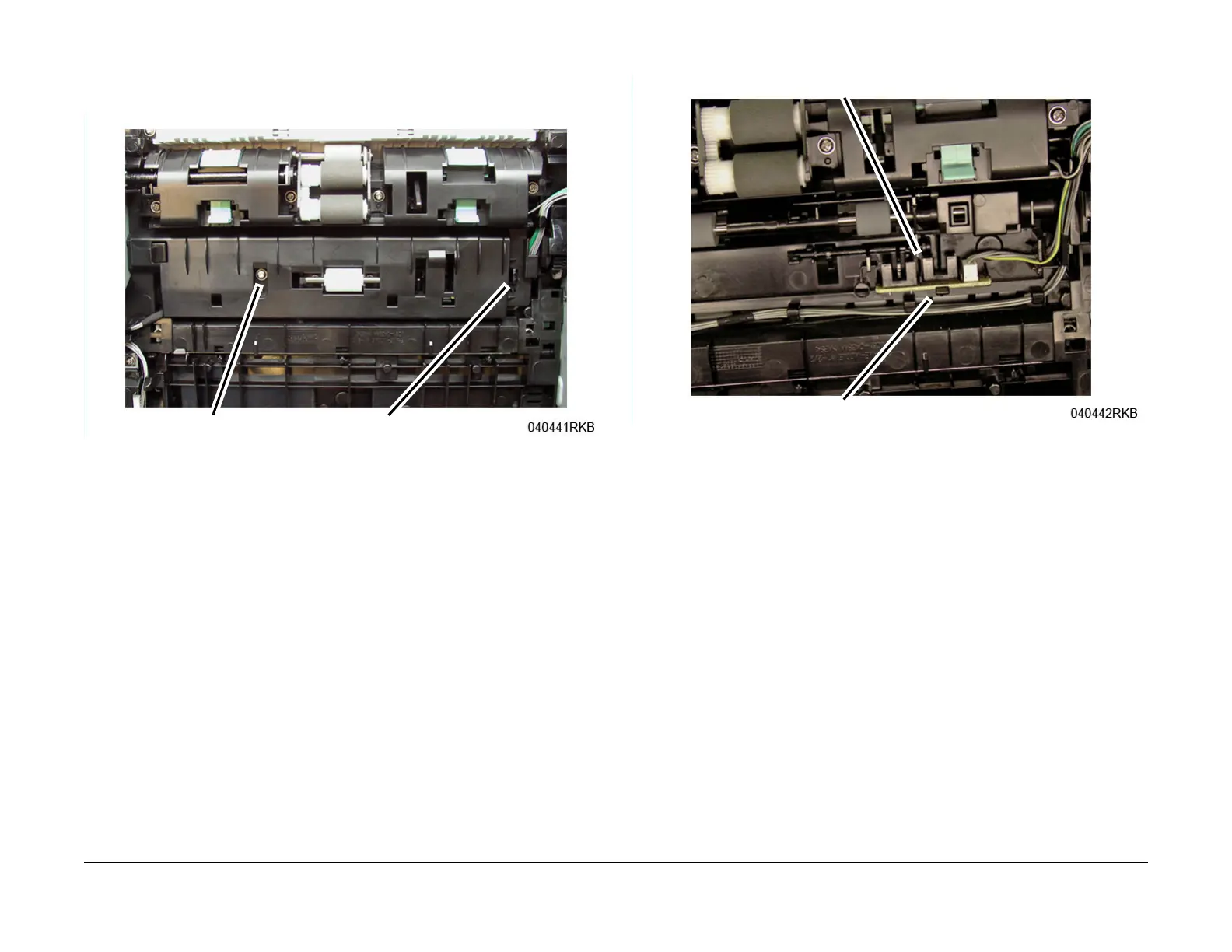

5. Remove the Paper Feed Sensor PWB Cover, Figure 2.
a. Remove the screw.
b. Release the latch and remove the cover.
Figure 2 Feed Sensors PWB Cover (Bottom View)
6. Release the latch and remove the Feed Sensor PWB, F
igure 3.
Figure 3 Feed Sensor PWB (Bottom View)
To Next Page
