July 2019
4-37
Xerox® B205/B215 Multifunction Printer Service Manual
REP 4.10
Repairs / Adjustments
Initial Release
7. Remove the Feed and Registration Sensor Actuators, Figure 4:
Note the location of the Spring in the frame cutout for reinstallation.
a. Release the Actuator from the latch.
b. Remove the Actuator.

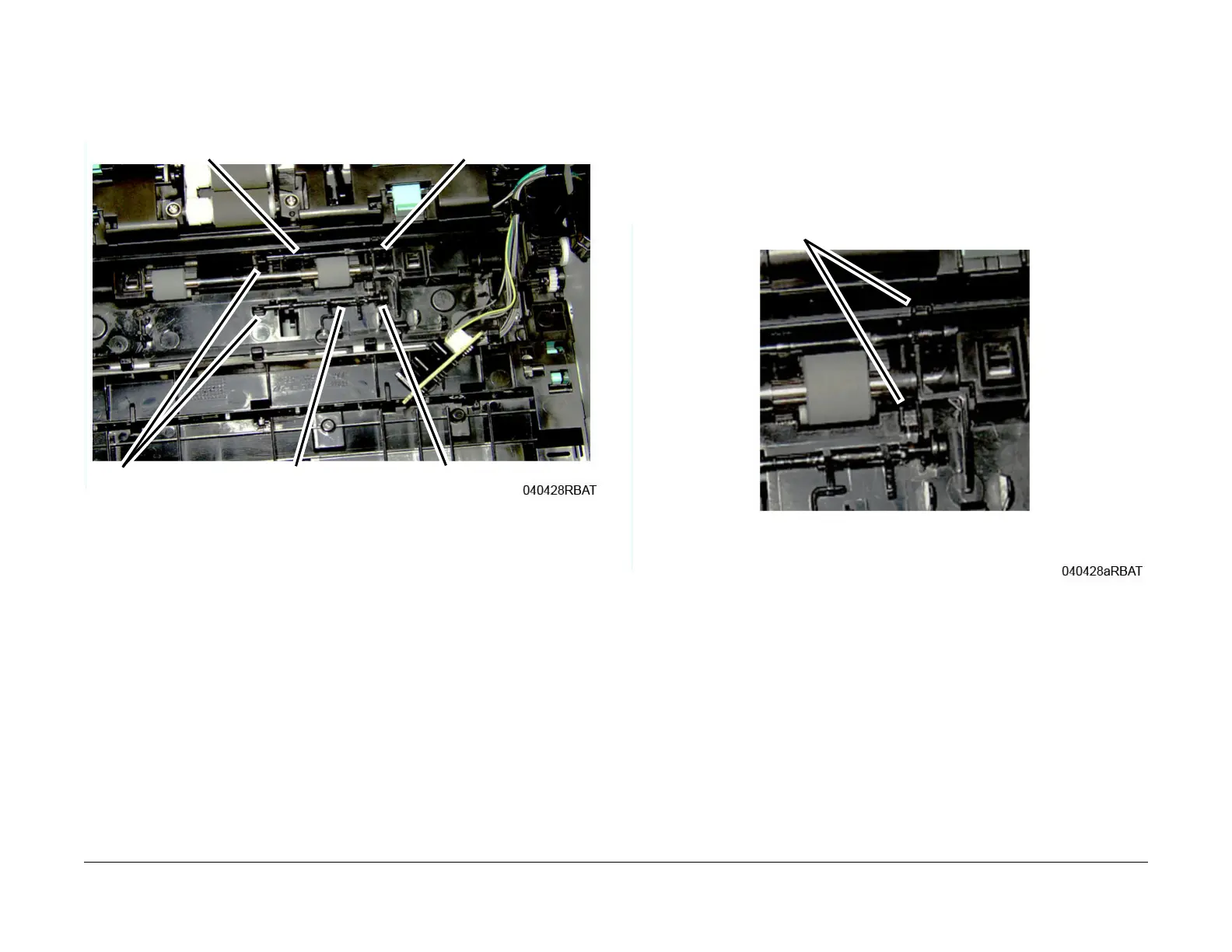

Figure 4 Feed and Registration Sensors Actuators (Bottom View)
Replacement
NOTE: Tapered plastic screws and round machine screws are used to hold the cover to the
frame. Make sure that the plastic screws go into plastic components and machine screws go
into the metal frame.
The replacement is the reverse of the removal procedure.
NOTE: When replacing the Actuators make sure the Spring is correctly seated in the cutout in
t
he frame, Figure 5.
Figure 5 Actuator Spring Cutouts (Bottom View)
Feed Sensor Actuator
Latch
Spring
Reg Sensor Actuator
Spring
To Next Page
