July 2019
4-67
Xerox® B205/B215 Multifunction Printer Service Manual
REP 8.4
Repairs / Adjustments
Initial Release

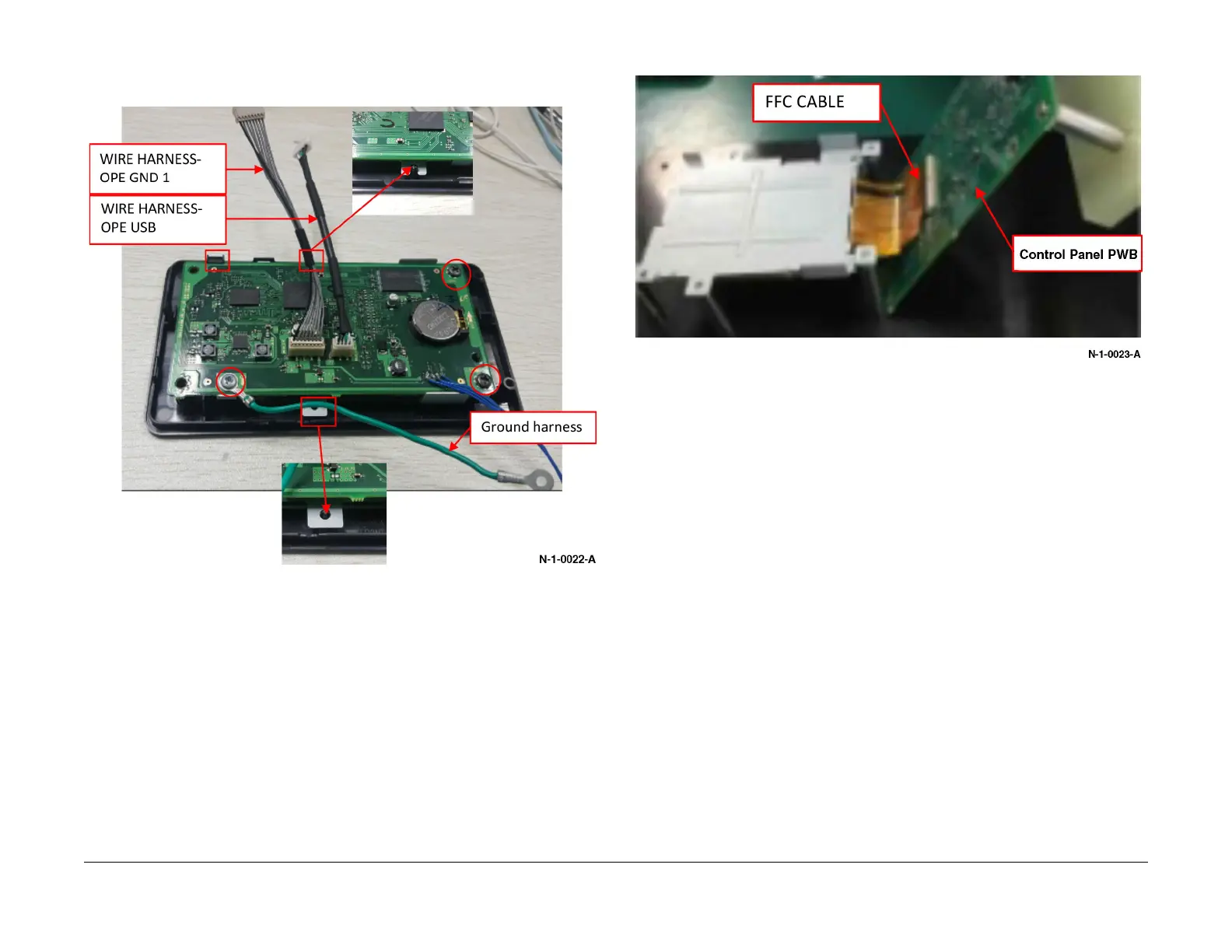

4. Remove three screws, disconnect the USB and Control Panel harnesses, then release
t
he hooks and guide boss holding the Control Panel PWB to remove from the Front Cover,
Figure 2
.
Figure 2 Release the Control Panel PWB
5. Release the Control Panel FFC cable, then remove the Control Panel PWB, F
igure 3.
Figure 3 Control Panel PWB removal
Replacement
The replacement is the reverse of the removal procedure.
