9. Remove the Feed and Registration Clutch Drive Gears, Figure 2.

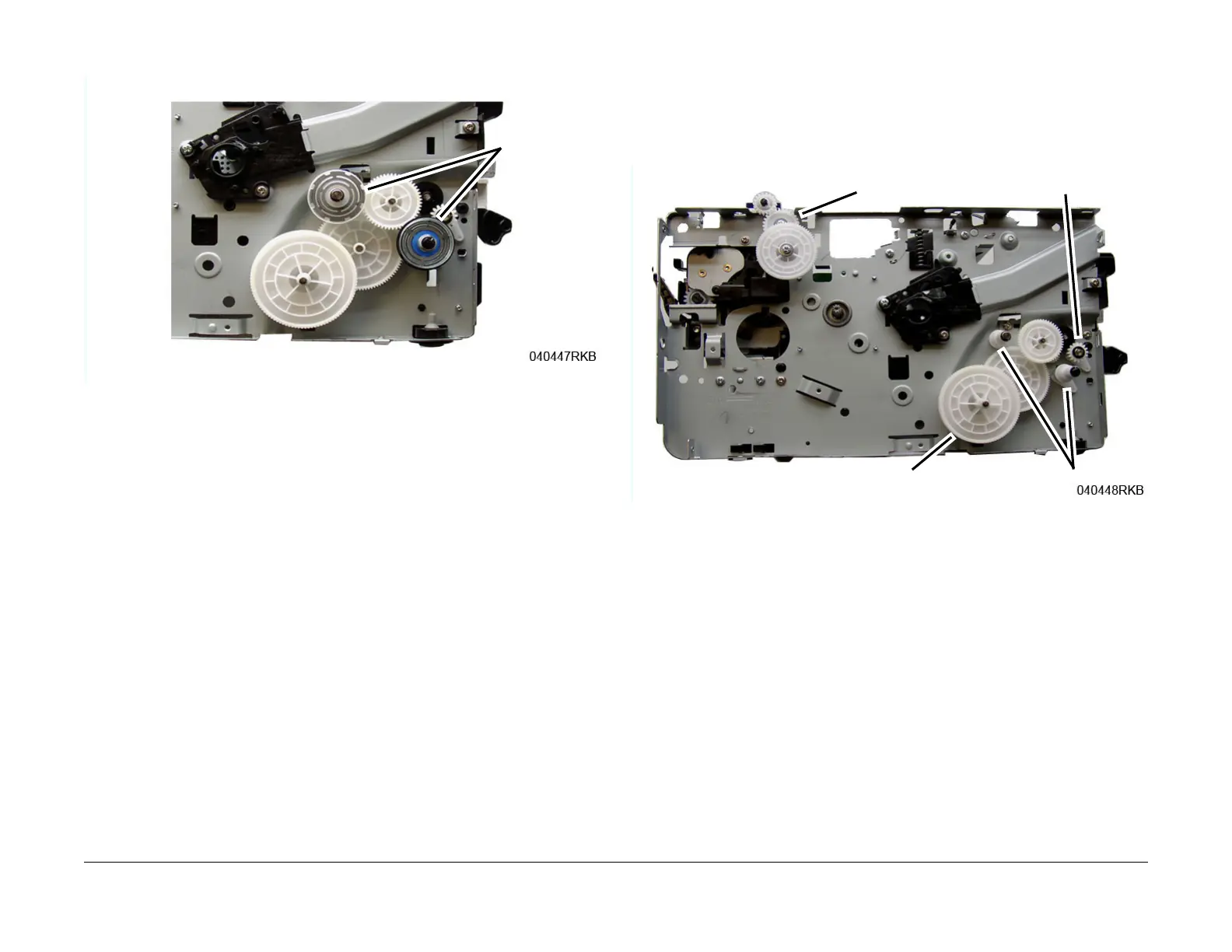

Figure 2 Feed and Registration Clutch Drive Gears
10. Remove the following parts, F
igure 3:
Make note of the order that the Feed and Registration Drive Gears were removed so that
they may be re-installed correctly.
a. Feed and Registration Drive Gears, there is a Snap Ring on one gear.
b. Feed and Registration Clutch Bushings (2 Snap Rings).
c. Exit Drive Gears, (2 screws and a Latch).
Figure 3 Drive Gears and Bushings
Snap Ring
Exit Drive Gears
Feed & Registration Drive Gears
Clutch Bushings
