Engine Paper Path
The following diagram display the path the paper follows during the engine printing process.

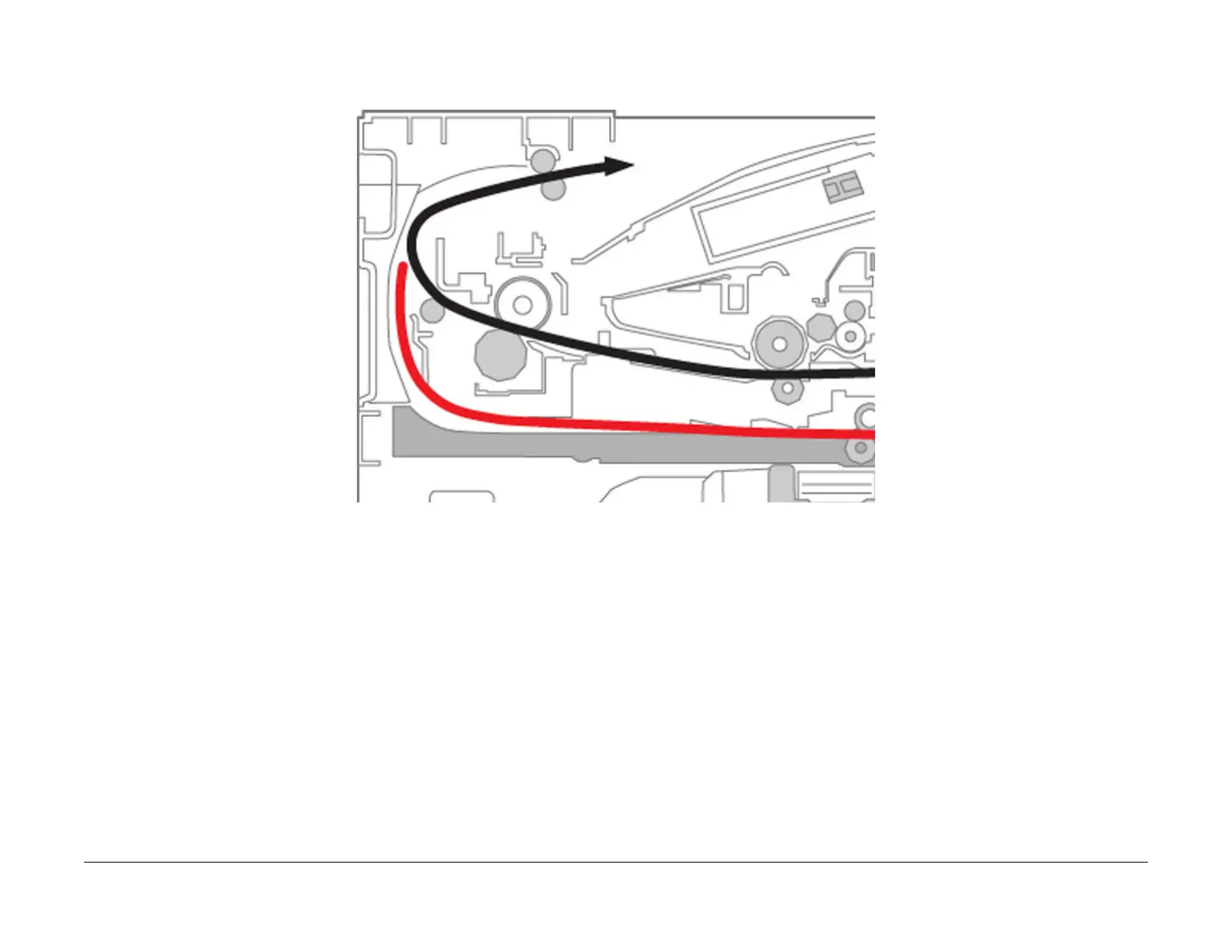

Figure 2 Engine Paper Path
