July 2019
6-7
Xerox® B205/B215 Multifunction Printer Service Manual
System Overview
General Procedures / Information
Initial Release
Laser Scanner Unit (LSU)
The Scanner Unit receives image data from the HVPS PWB and scans the surface of the pho-
toreceptor drum (OPC) with a laser to create a latent image.

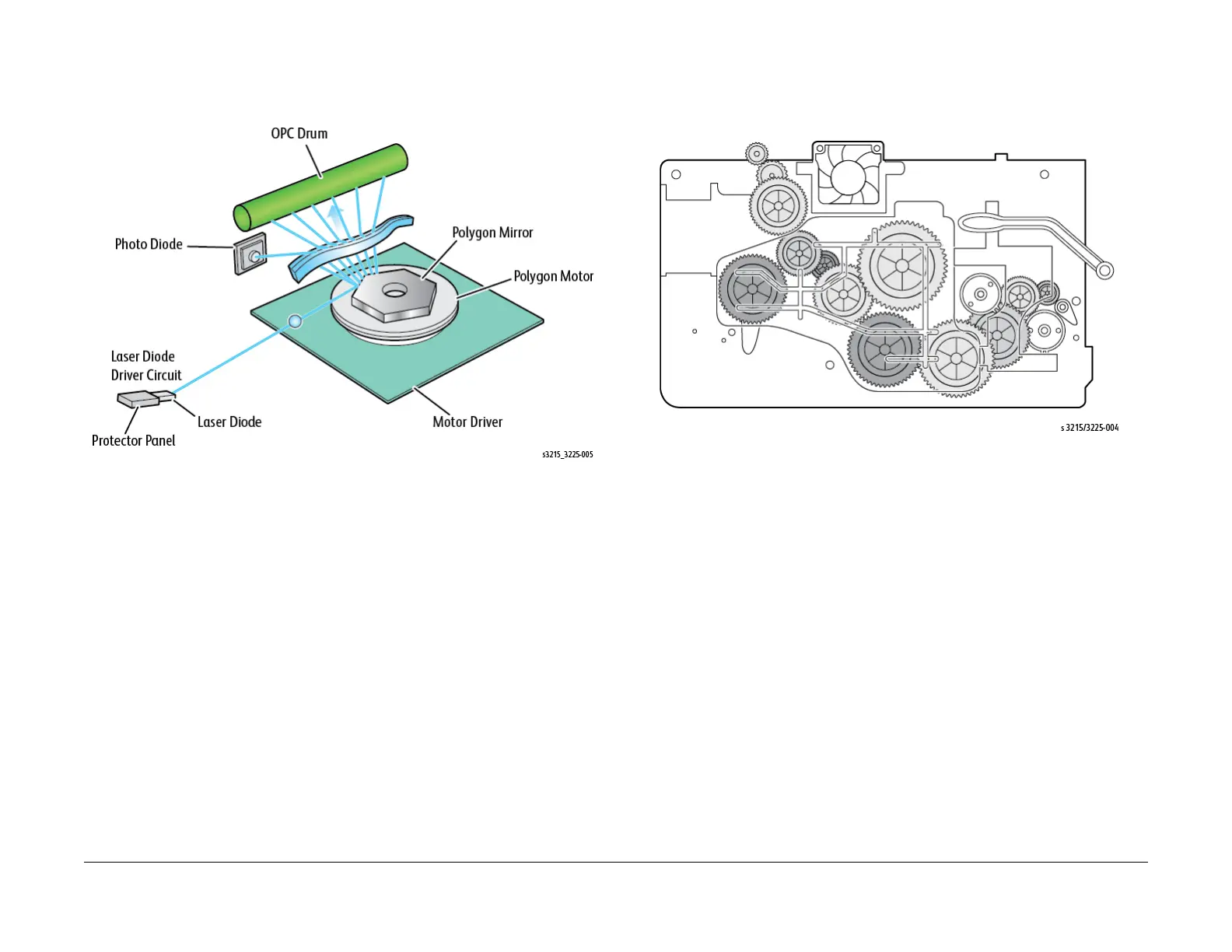

Figure 5 Laser Scanner Unit
Drives
The Drive System consists of the Main (BLDC) Motor, Registration and Pick-up Clutches along
with various gears for the Drum Cartridge (OPC), Fuser, Pick-up, Registration, Feed and Exit
Rollers.
Figure 6 Drive Gears and Clutches
