July 2019
7-4
Xerox® B205/B215 Multifunction Printer Service Manual
BSD 1
Initial Release
Wiring Data
BSD 1
1. Main/Electrical/Power/Drive/LSU/Fuser/Network

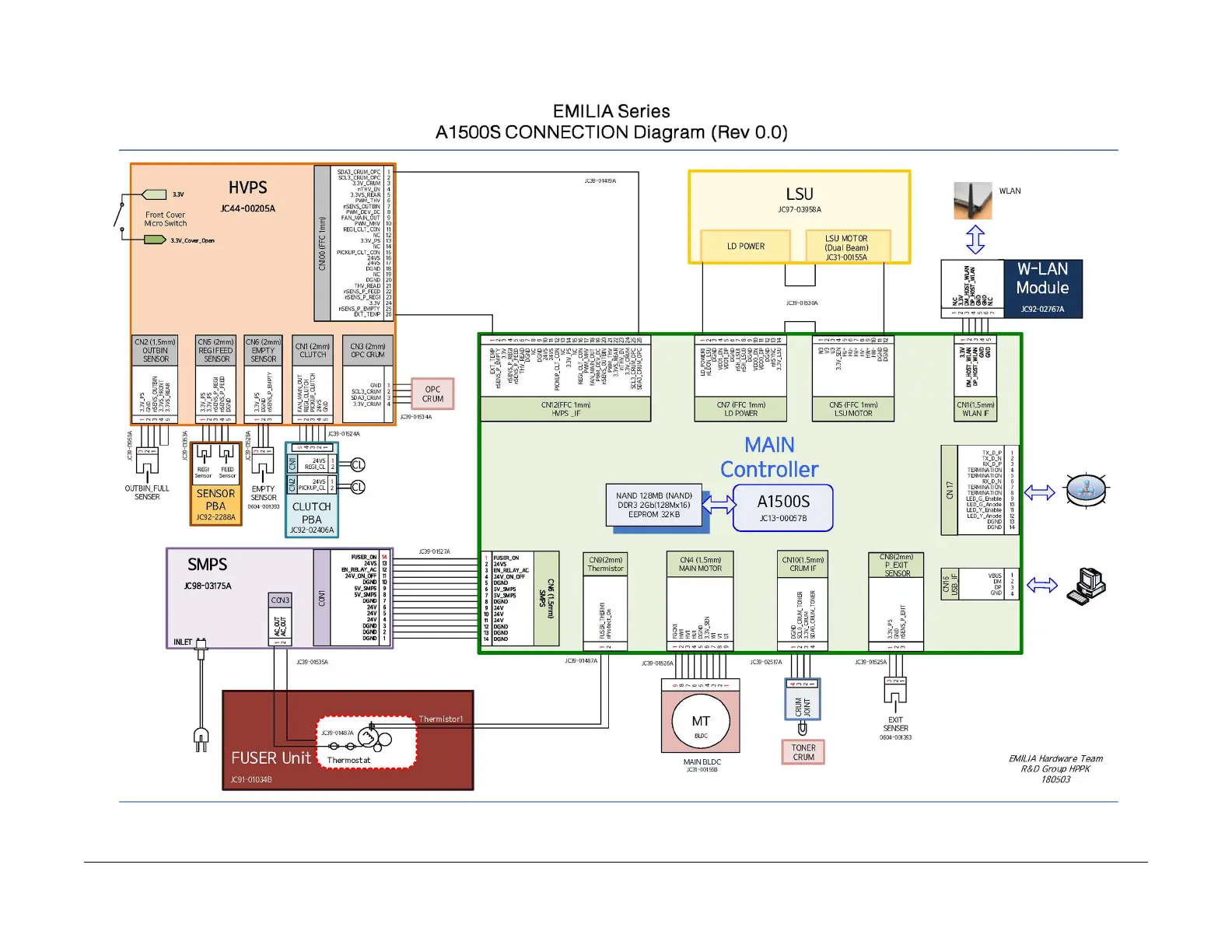

Figure 1 1.1 - Main/Electrical/Power/Drive/LSU/Fuser/Network
