July 2019
5-6
Xerox® B210 Service Manual
PL 4.1
Initial Release
Parts List

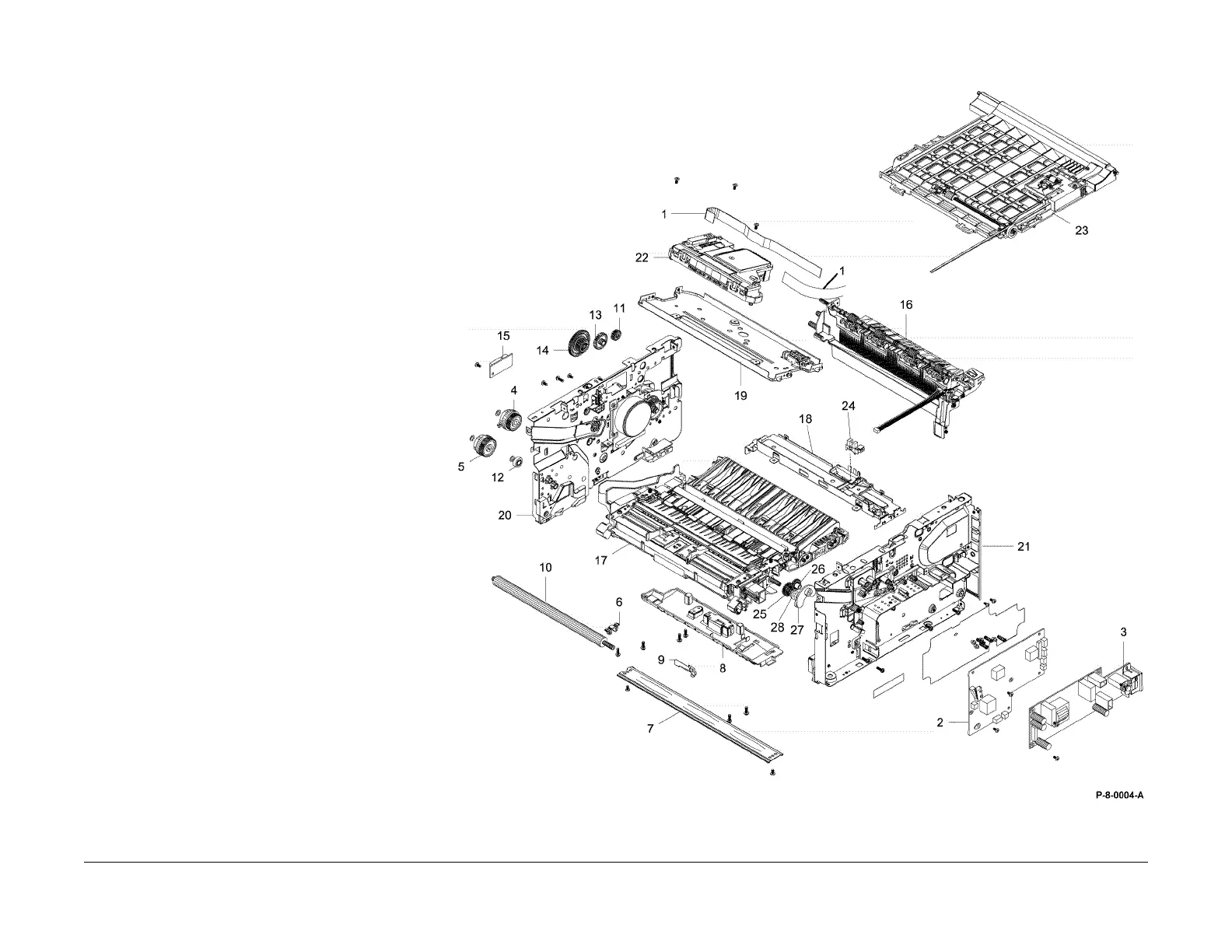

PL 4.1 Frame
Item Part Description
1 117N01969 Flat Cable
2 105N02301 HVPS (RE
P 4.1)
3 105N02351 LVPS 220V (RE
P 4.2)
105N02350 LVPS 110V (RE
P 4.2)
4 121N01269 Registration Clutch (REP 4.3)
5 121N01248 Feed Clutch (RE
P 4.3)
6 Transfer Roll Holder
7 –Bottom Bar
8 Feed Frame
9 Ground Clip
10 022N02309 Transfer Roll (RE
P 4.4)
11 Exit Gear
12 Feed Gear
13 Exit Idle Gear
14 Exit Gear
15 011N00581 Paper Feed PWB (RE
P 4.3)
16 Main Exit Frame
17 Paper Path Frame
18 Exit Sensor Frame
19 LSU Bracket Frame
20 Left Main Frame
21 Right Main Frame
22 062N00292 LSU (RE
P 4.5)
23 Duplex (RE
P 4.6)
24 130N01574 Exit Sensor
25 Registration Roll Pivot Gear
26 Registration Roll Drive Gear
27 Pivot Plate
28 Collar
