July 2019
4-16
Xerox® B210 Service Manual
REP 4.4, REP 4.5
Initial Release
Repairs - Adjustments

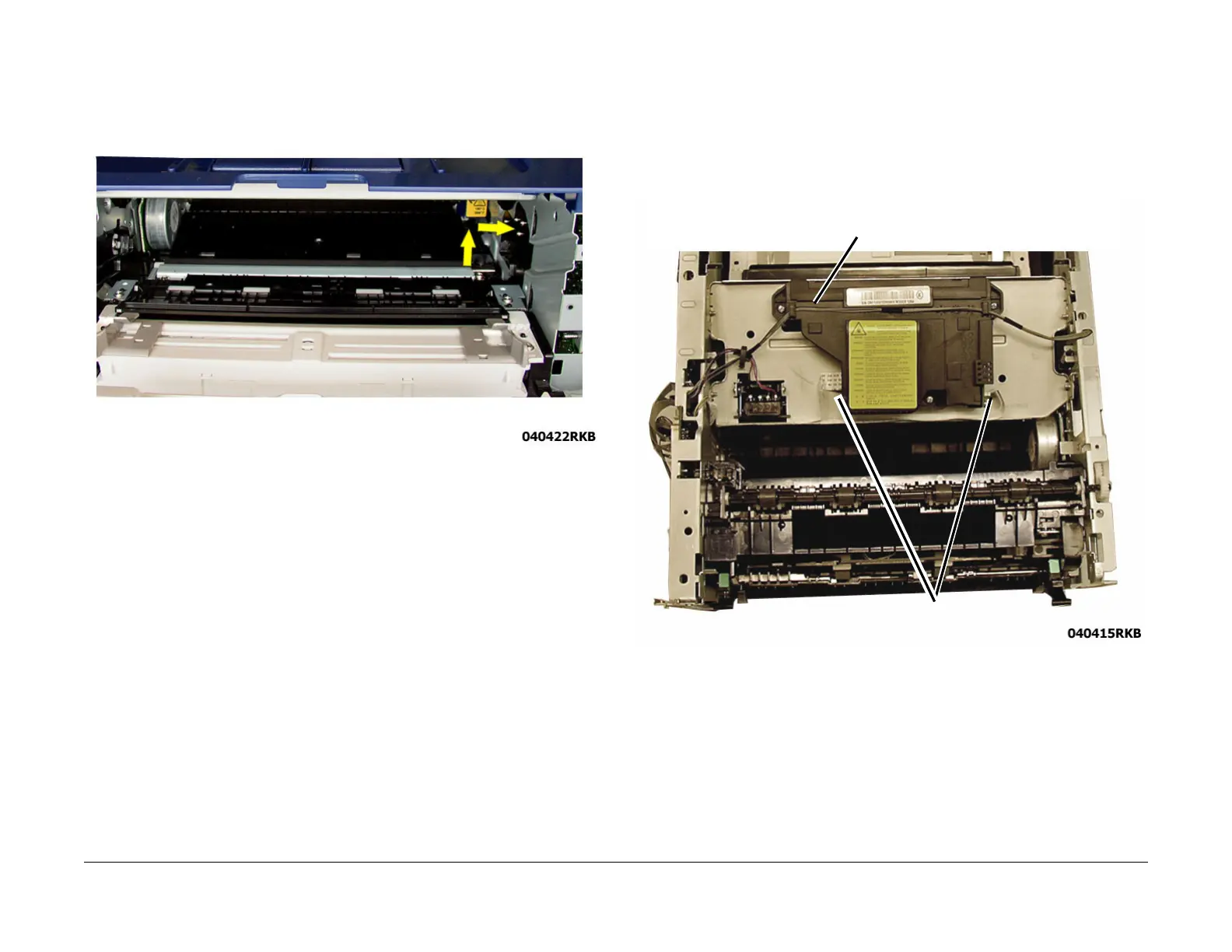

4. Remove the Transfer Roll, Figure 2:
a. Lift the right end of the Transfer Roll and slide the left end out of the bushing, Figure
2.
Figure 2 Removing the Transfer Roll
Replacement
Replacement is the reverse of the removal procedure.
REP 4.5 LSU and Cables
Parts List on PL 4.1
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Top Cover, RE
P 3.2.
3. Disconnect two connectors on the LSU, then release the harness from the LSU harness
guide
, Figure 1.
Figure 1 LSU Cable Connectors and Wire Harness (Top View)
NOTE: The Flat Cable may be adhered to the LSU. Detach it from the LSU and reinstall it
on t
he new LSU in the same location.
