4. Remove three screws, then remove the LSU, Figure 2.

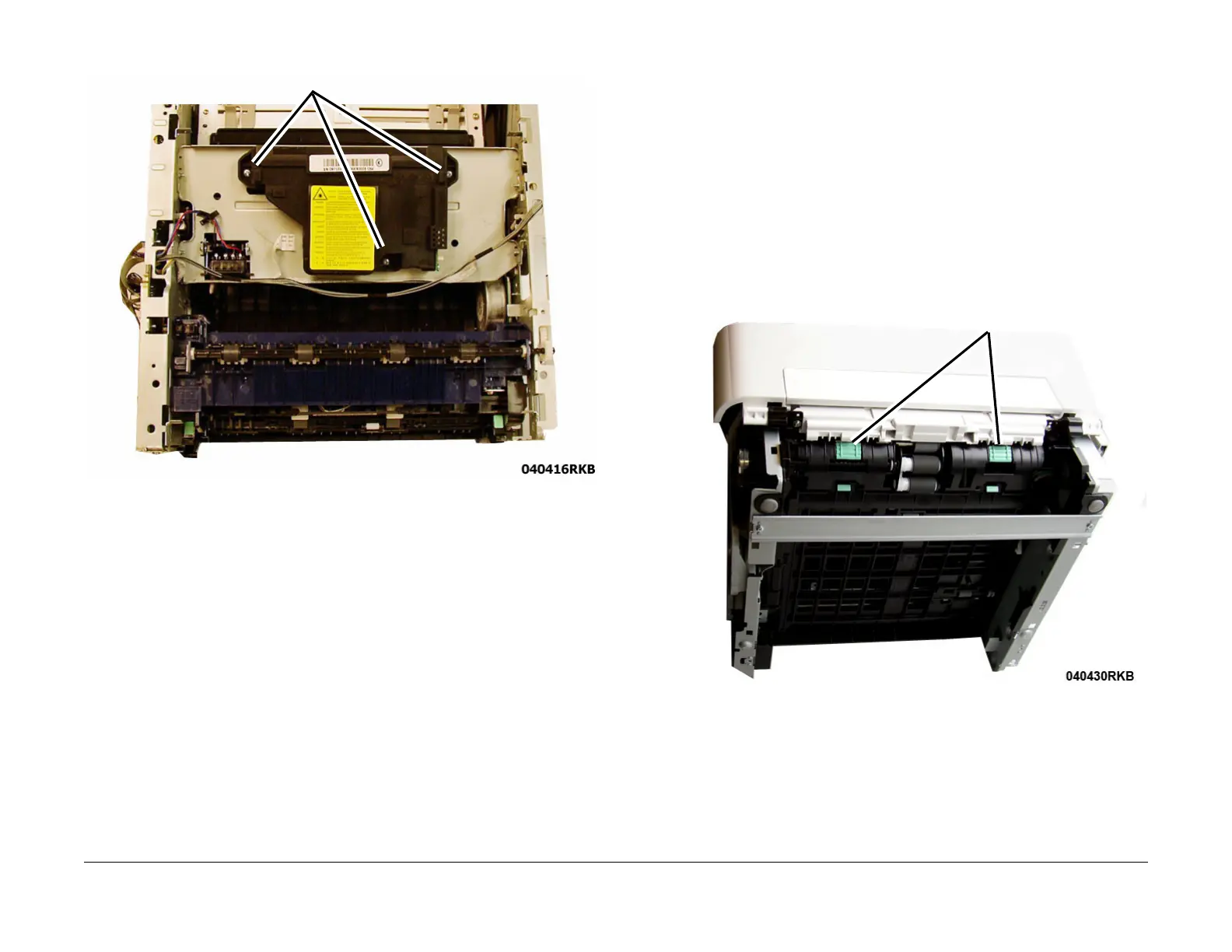

Figure 2 LSU Removal (Top View)
Replacement
Replacement is the reverse of the removal procedure.
REP 4.6 Duplex Assembly
Parts List on PL 4.2
Removal
1. Switch off the machine, then disconnect the power cord.
2. Remove the Paper Cassette.
3. Remove the Left and Right Side Covers, RE
P 2.2.
4. Remove the Rear Cover, REP 2.3.
NOTE: The Rear Cover holds the Duplex Assembly Pivot in the frame cutout. With the
Rear
Cover removed, the assembly will come out of the pivot when the front latches
are
released.
5. Press the two green tabs in the front of the printer to release the Duplex Assembly, t
hen
r
emove the Duplex Assembly, Figure 1.
Figure 1 Duplex Assembly Release Tabs (Bottom View)
