Xerox B210 - Maintenance

July 2019
5-10
Xerox® B210 Service Manual
PL 4.5
Initial Release
Parts List

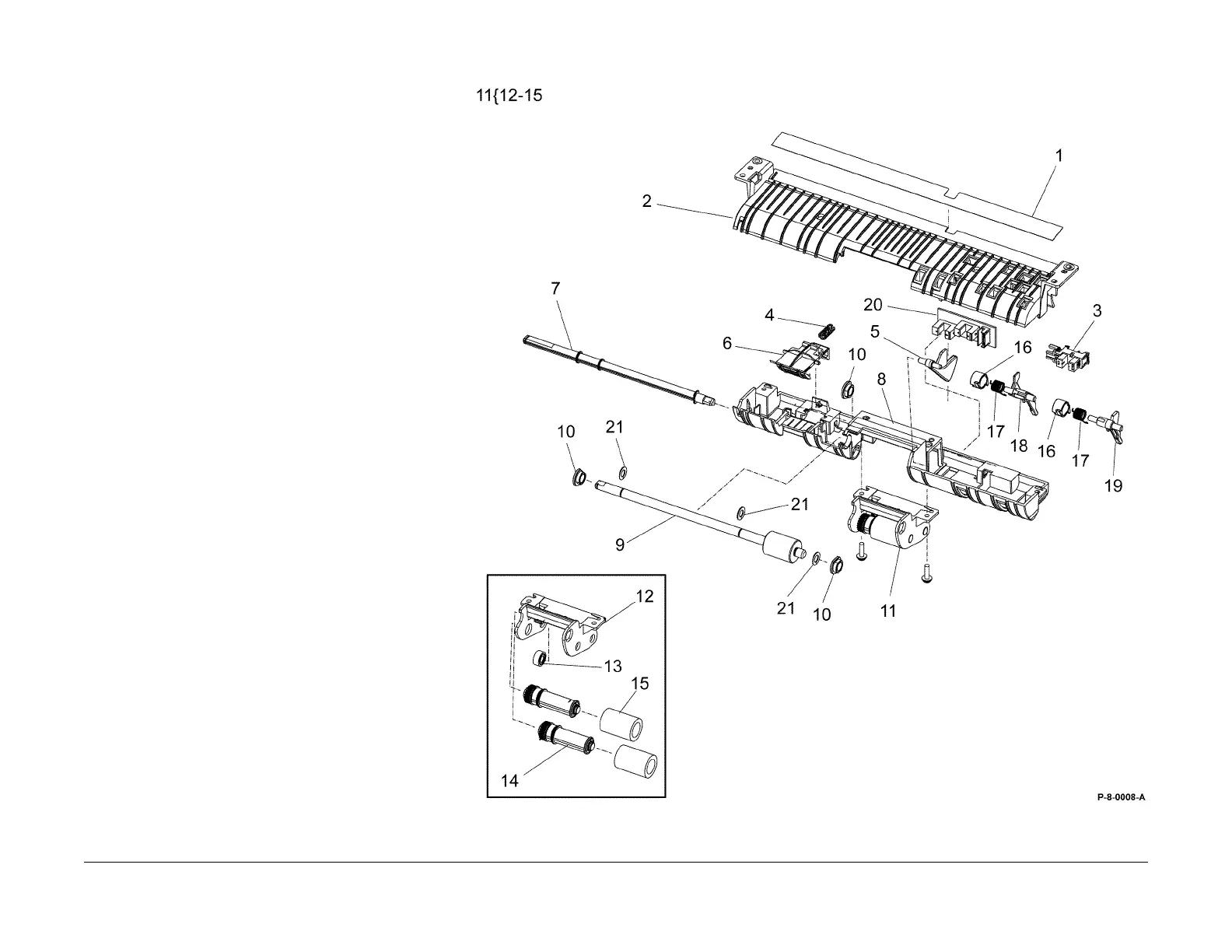

PL 4.5 Base Pick Up
Item Part Description
1 – Duplex Path Sheet
2 – Duplex Guide
3 130N01574 Exit Sensor (RE
P 4.12)
4 –Spring
5 – Sensor Actuator
6 – Duplex Guide Lever
7 – Pick Up Shaft
8 – Pick Up Guide
9 022N02802 Paper Drive Roll (RE
P 4.13)
10 – Bushing
11 130N01760 Paper Feed Roll Assembly (RE
P
4.14)
12 – Feed Roll Holder
13 – Idle Pick Up Gear
14 – One Way Clutch
15 – Retard Roller
16 – Actuator Empty Holder (RE
P 4.18)
17 – Spring TS (REP 4.18)
18 – Actuator - Width (REP 4.18)
19 – Actuator - Paper (REP 4.18)
20 – Feed Sensor PWB (REP 4.18)
21 – Washer
